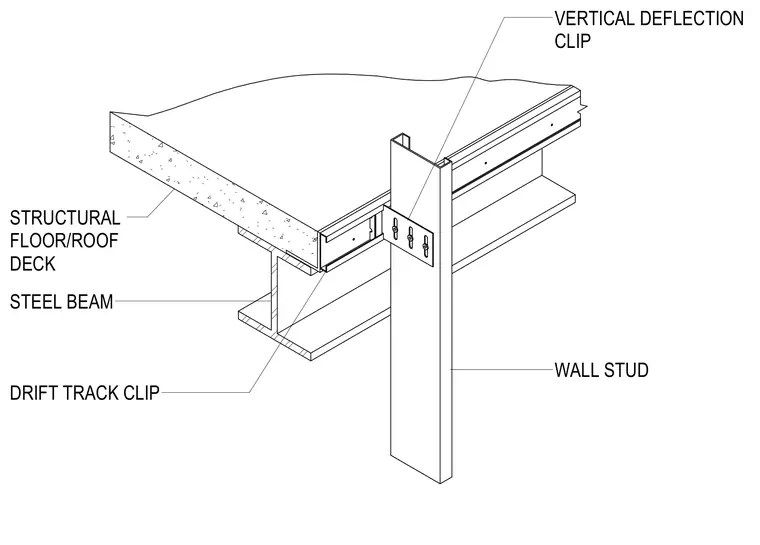

A cold-formed metal wall stud connects to a structural steel beam and overhead floor or roof deck, allowing for independent vertical movement. A drift track clip is secured to the edge of the structural floor or roof deck alongside the steel beam. A vertical deflection clip fastens the wall stud to the drift track assembly with slotted fasteners to accommodate slab deflection without transferring vertical loads to the partition.
WALL STUD VERTICAL DEFLECTION CLIP STRUCTURAL FLOOR/ROOF DECK STEEL BEAM DRIFT TRACK CLIP
