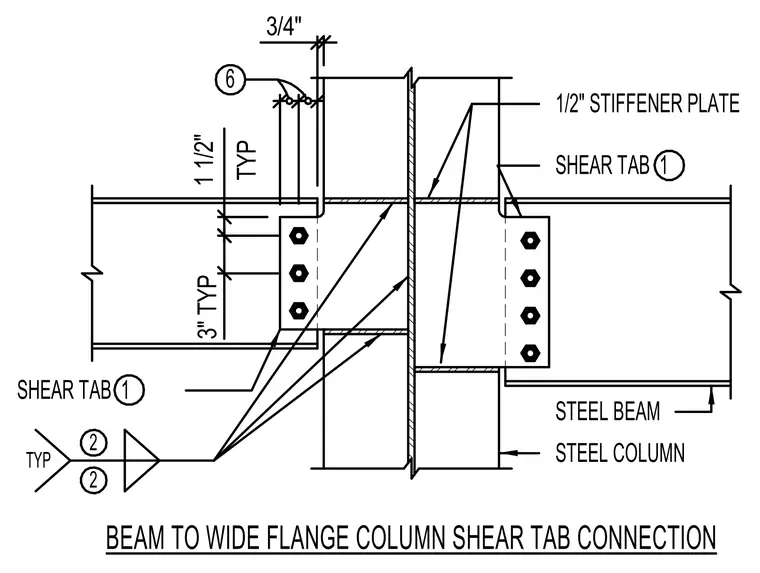

A steel beam connects to a wide flange steel column using a single plate shear tab welded to the column flange and bolted to the beam web with three bolts spaced at three inches typical. One-half-inch stiffener plates are welded inside the column web aligned with the top and bottom flanges of the connected beams. Edge distances and fastener spacings are detailed with typical one-and-one-half-inch and three-inch dimensions.
6 TYP 1 1/2" 3" TYP 3/4" 1/2" STIFFENER PLATE STEEL COLUMN STEEL BEAM SHEAR TAB 1 SHEAR TAB 1 2 2 TYP BEAM TO WIDE FLANGE COLUMN SHEAR TAB CONNECTION
