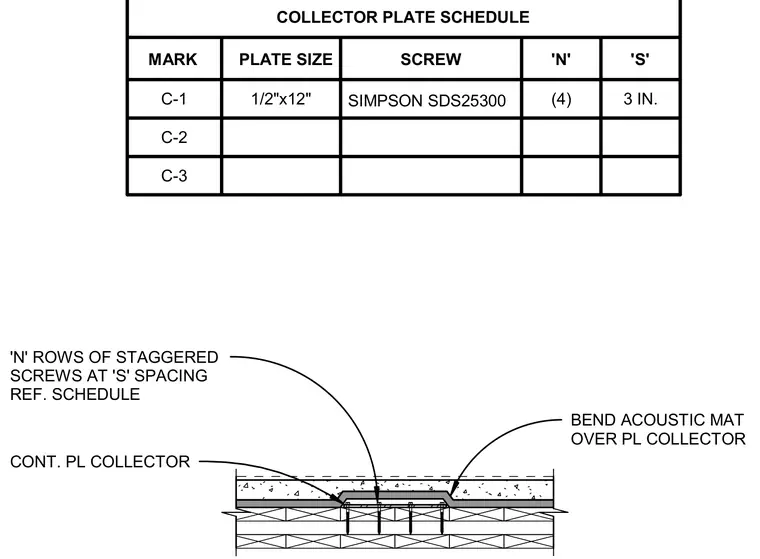

A continuous steel collector plate is fastened to the supporting timber structure using four rows of staggered Simpson SDS25300 heavy-duty wood screws spaced at three inches on center, with plate sizes specified in the schedule. An acoustic mat bends continuously over the steel collector plate.
MARK PLATE SIZE SCREW 'N' 'S' C-1 C-2 C-3 1/2"x12" SIMPSON SDS25300 (4) 3 IN. COLLECTOR PLATE SCHEDULE 'N' ROWS OF STAGGERED SCREWS AT 'S' SPACING REF. SCHEDULE CONT. PL COLLECTOR BEND ACOUSTIC MAT OVER PL COLLECTOR
