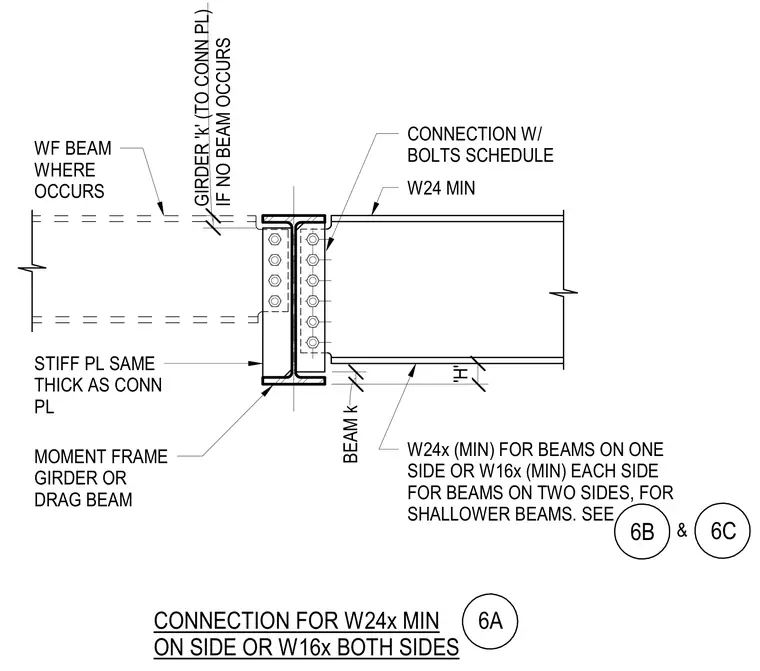

A wide flange beam connects to the web of the supporting girder using a connection plate secured with a bolted connection per the bolts schedule. Stiffener plates matching the thickness of the connection plate are provided on the opposite side of the girder web. For beams occurring on one side, a W24 minimum is required, while W16 minimum is required on each side for beams occurring on two sides.
CONNECTION FOR W24x MIN ON SIDE OR W16x BOTH SIDES STIFF PL SAME THICK AS CONN PL W24x (MIN) FOR BEAMS ON ONE SIDE OR W16x (MIN) EACH SIDE FOR BEAMS ON TWO SIDES, FOR SHALLOWER BEAMS. SEE MOMENT FRAME GIRDER OR DRAG BEAM CONNECTION W/ BOLTS SCHEDULE WF BEAM WHERE OCCURS W24 MIN BEAM k 6A GIRDER 'k' (TO CONN PL) IF NO BEAM OCCURS 6B 6C & 'H'
