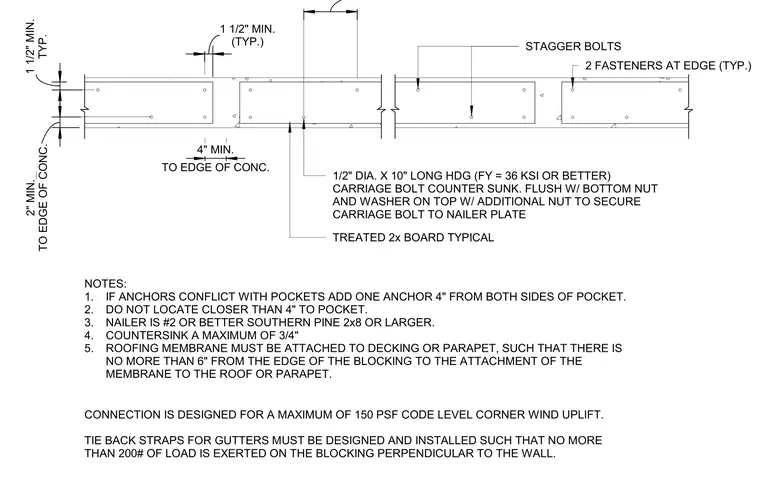

A treated number two or better Southern Pine two-by-eight or larger wood nailer is anchored to the concrete parapet using one-half inch diameter by ten inch long hot-dipped galvanized carriage bolts with a minimum yield strength of thirty-six thousand pounds per square inch. The carriage bolts are countersunk a maximum of three-quarters of an inch, installed flush with the bottom nut, and secured with a washer and additional nut on top. Bolts are spaced at a maximum of twenty-four inches on center, with a twelve-inch on center maximum spacing within twenty-four feet of each corner, and staggered to maintain edge distances. A minimum of four inches is maintained to the edge of the concrete, with specific clearances required from any pockets. The assembly is designed for a maximum of one hundred fifty pounds per square foot code-level corner wind uplift, and gutter tie-back straps must be limited to two hundred pounds of perpendicular load on the blocking.
Text on the drawing
DATE: 02/20/2023 TO EDGE OF CONC. 4" MIN. (TYP.) 1 1/2" MIN. TO EDGE OF CONC. 2" MIN. TYP. 1 1/2" MIN. (12" O.C. MAX FOR 24' FROM EACH CORNERS) 24" O.C. MAX. STAGGER BOLTS 2 FASTENERS AT EDGE (TYP.) TREATED 2x BOARD TYPICAL 1/2" DIA. X 10" LONG HDG (FY = 36 KSI OR BETTER) CARRIAGE BOLT COUNTER SUNK. FLUSH W/ BOTTOM NUT AND WASHER ON TOP W/ ADDITIONAL NUT TO SECURE CARRIAGE BOLT TO NAILER PLATE NOTES: 1. IF ANCHORS CONFLICT WITH POCKETS ADD ONE ANCHOR 4" FROM BOTH SIDES OF POCKET. 2. DO NOT LOCATE CLOSER THAN 4" TO POCKET. 3. NAILER IS #2 OR BETTER SOUTHERN PINE 2x8 OR LARGER. 4. COUNTERSINK A MAXIMUM OF 3/4" 5. ROOFING MEMBRANE MUST BE ATTACHED TO DECKING OR PARAPET, SUCH THAT THERE IS NO MORE THAN 6" FROM THE EDGE OF THE BLOCKING TO THE ATTACHMENT OF THE MEMBRANE TO THE ROOF OR PARAPET. CONNECTION IS DESIGNED FOR A MAXIMUM OF 150 PSF CODE LEVEL CORNER WIND UPLIFT. TIE BACK STRAPS FOR GUTTERS MUST BE DESIGNED AND INSTALLED SUCH THAT NO MORE THAN 200# OF LOAD IS EXERTED ON THE BLOCKING PERPENDICULAR TO THE WALL. SCALE: 3/4" = 1'-0" S301 6 JOIST GIRDER TO TILT-UP PANEL W/ PARAPET
