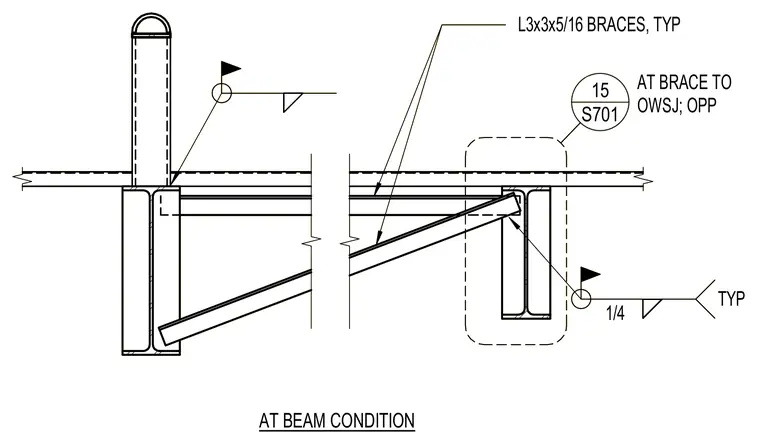

L3x3x5/16 structural angles serve as typical diagonal bracing members connected to the open web steel joist and supporting beam assembly. Fillet welds of one-quarter inch size secure the bracing members at the beam condition and joist intersection.
L3x3x5/16 BRACES, TYP 1/4 TYP AT BEAM CONDITION AT BRACE TO OWSJ; OPP S701 15 L3x3x5/16 BRACES, TYP 1/4 TYP AT BEAM CONDITION AT BRACE TO OWSJ; OPP S701 15
