Tilt-Up Wall Panel Foundation and Slab Connection Details

Materials

Elements

Walls Floors / Slabs Foundations / Footings Arches Anchors / Embeds Connections / Plates Reinforcing Roof / Floor Openings

Connections

Rebar Splice / Development

About this detail

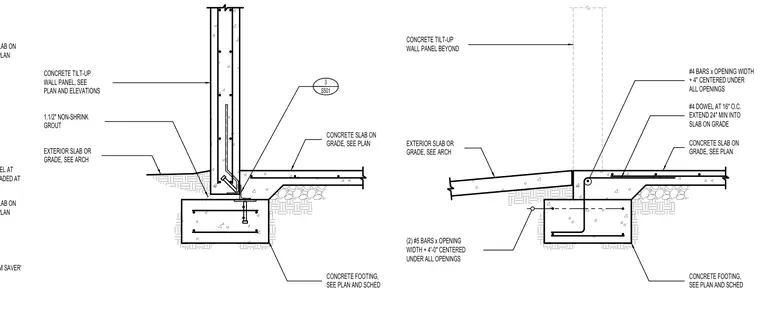

A concrete tilt-up wall panel bears on a concrete footing with one and one-half inches of non-shrink grout beneath the panel base. A concrete slab on grade connects to the wall assembly using number four dowels at eighteen inches on center threaded into Lenton form savers, supplemented by number four bars and number five bars spanning opening widths. An exterior slab on grade is positioned adjacent to the footing as detailed per architectural drawings. The foundation system includes a cast-in-place concrete footing sized per plan and schedule with continuous reinforcing bars.
