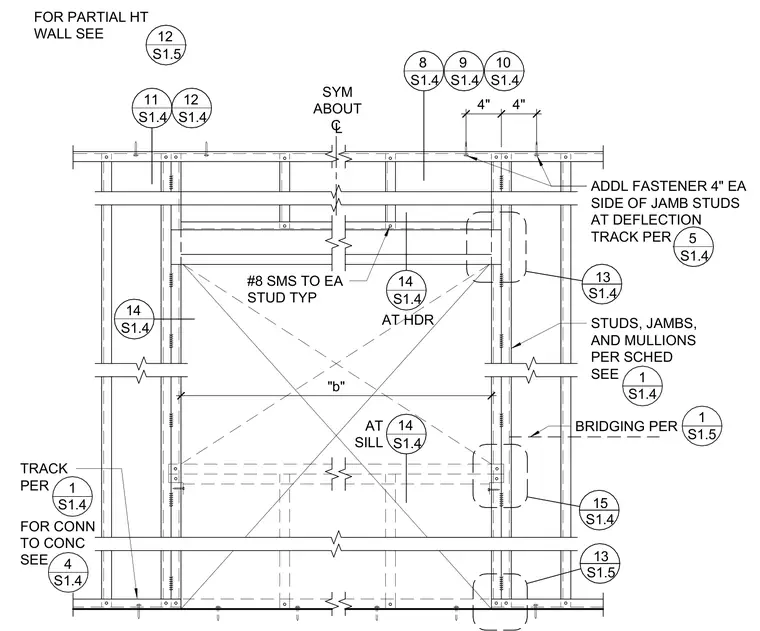

Cold-formed steel framing at a wall opening includes jamb studs, head track, and sill track configured per structural schedules. Additional fasteners are specified at four inches on each side of the jamb studs at the deflection track. Number eight sheet metal screws secure each stud typically, with bridging installed per referenced details. Connections to concrete are detailed separately.
"b" ADDL FASTENER 4" EA SIDE OF JAMB STUDS AT DEFLECTION TRACK PER STUDS, JAMBS, AND MULLIONS PER SCHED SEE BRIDGING PER #8 SMS TO EA STUD TYP AT HDR FOR PARTIAL HT WALL SEE SYM ABOUT ¢ 4" 4" 10 S1.4 ___________ 14 S1.4 ___________ 9 S1.4 ___________ 5 S1.4 ___________ 8 S1.4 ___________ 13 S1.4 14 S1.4 ___________ 14 S1.4 ___________ AT SILL 15 S1.4 13 S1.5 TRACK PER FOR CONN TO CONC SEE 12 S1.5 ___________ 11 S1.4 ___________ 12 S1.4 ___________ 4 S1.4 1 S1.5 1 S1.4 1 S1.4
