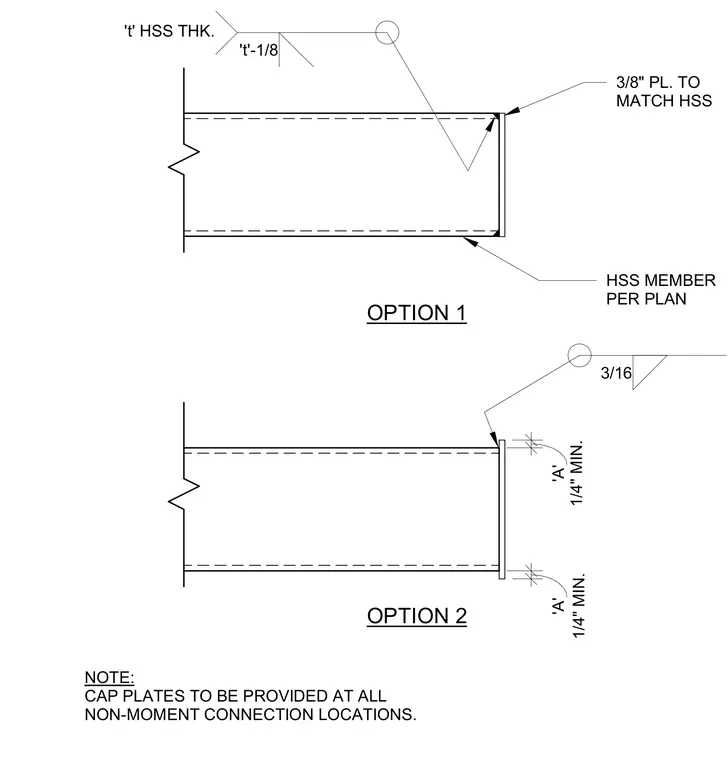

Two connection options cap a hollow structural section member using a three-eighths-inch plate sized to match the HSS dimensions per plan. Option 1 features a flush-fit cap plate welded with a size determined by the HSS thickness minus one-eighth of an inch. Option 2 provides a slightly oversized cap plate maintaining a minimum quarter-inch projection beyond the HSS wall with a three-sixteenths-inch fillet weld. Cap plates are specified for all non-moment connection locations.
NOTE: CAP PLATES TO BE PROVIDED AT ALL NON-MOMENT CONNECTION LOCATIONS. HSS MEMBER PER PLAN 3/8" PL. TO MATCH HSS 't'-1/8 't' HSS THK. OPTION 1 3/16 1/4" MIN. 'A' OPTION 2 1/4" MIN. 'A'
