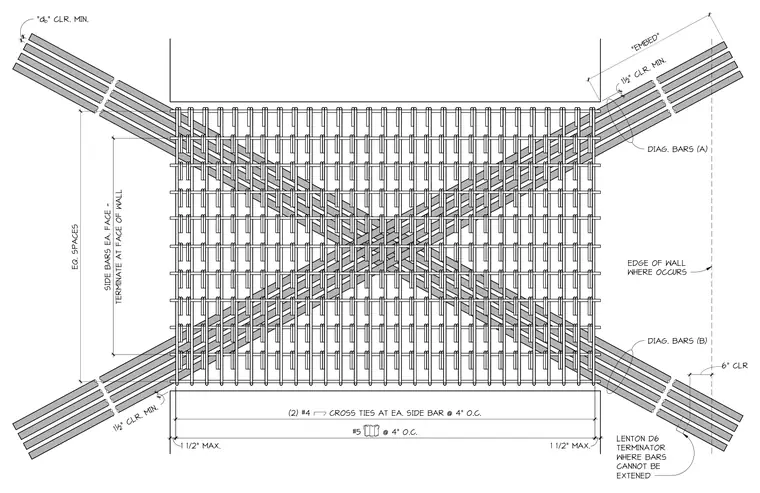

Concrete wall edge reinforcing with diagonal reinforcing bars and cross ties. The assembly features #5 diagonal bars A and B spaced at 4" on center with 1-1/2" minimum clearance. Two #4 cross ties are positioned at each side bar spaced at 4" on center. Side bars on each face terminate at the face of the wall. Lenton D6 terminators are specified where bars cannot be extended.
#5 @ 4" O.C. DIAG. BARS (B) "EMBED" DIAG. BARS (A) EQ. SPACES 1 1/2" 1 3/8" 1½" CLR. MIN. 1½" CLR. MIN. (2) #4 CROSS TIES AT EA. SIDE BAR @ 4" O.C. 1 1/2" MAX. 1 1/2" MAX. EDGE OF WALL WHERE OCCURS LENTON D6 TERMINATOR WHERE BARS CANNOT BE EXTENED TERMINATE AT FACE OF WALL SIDE BARS EA. FACE - "d b " CLR. MIN. 1 1/8" 0" 6" CLR
