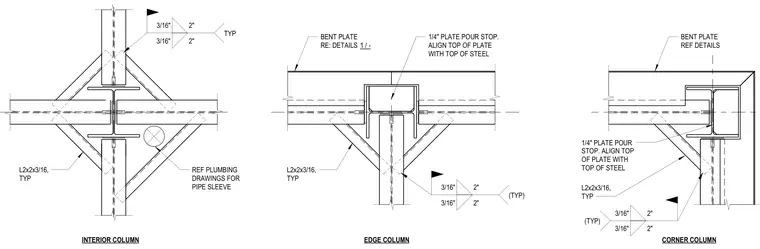

The assembly details structural steel column connections with bent plates, one-quarter-inch pour stops aligned with the top of steel, and typical L2x2x3/16 angle braces welded with three-sixteenth-inch welds at two-inch spacing. Interior column conditions coordinate with plumbing drawings for pipe sleeves through the framing. Edge and corner conditions detail the placement of bent plates and pour stops relative to the perimeter columns.
INTERIOR COLUMN 3/16" 2" 3/16" 2" TYP REF PLUMBING DRAWINGS FOR PIPE SLEEVE EDGE COLUMN CORNER COLUMN L2x2x3/16, TYP 3/16" 2" 3/16" 2" (TYP) 3/16" 2" 3/16" 2" (TYP) BENT PLATE REF DETAILS BENT PLATE RE: DETAILS 1/4" PLATE POUR STOP. ALIGN TOP OF PLATE WITH TOP OF STEEL 1/4" PLATE POUR STOP. ALIGN TOP OF PLATE WITH TOP OF STEEL L2x2x3/16, TYP L2x2x3/16, TYP 1 / -
