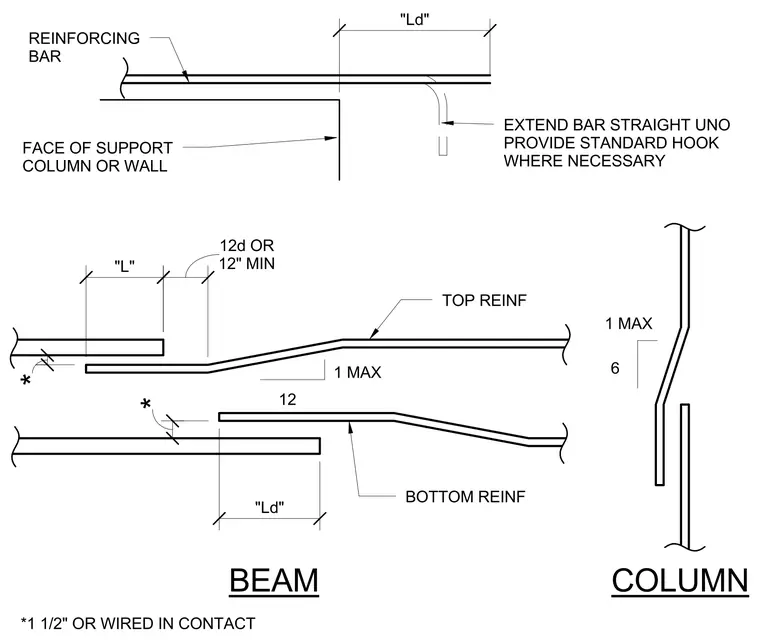

Reinforcing bars extend straight past the face of support column or wall unless a standard hook is required, maintaining a development length of Ld. Beam top and bottom reinforcing laps are detailed with specified lap lengths L and Ld, offsetting at a maximum slope of 1 to 6 with a one-and-one-half inch or wired in contact spacing. Column vertical reinforcing bars are offset with a maximum one-to-six slope for lap splicing.
COLUMN *1 1/2" OR WIRED IN CONTACT FACE OF SUPPORT COLUMN OR WALL REINFORCING BAR BOTTOM REINF 1 MAX 12 6 TOP REINF 1 MAX EXTEND BAR STRAIGHT UNO PROVIDE STANDARD HOOK WHERE NECESSARY "Ld" "L" 12" MIN 12d OR * * "Ld" BEAM
