Steel beams frame into a column with continuity plates aligned with the top flanges. The connection utilizes shear tabs welded to the column flange with specified fillet welds and bolted to the beam web. Bolt counts and sizes for the first and second rows are sized per plan and notes. Top flange thicknesses TF1 and TF2 determine continuity plate sizing per the schedule.

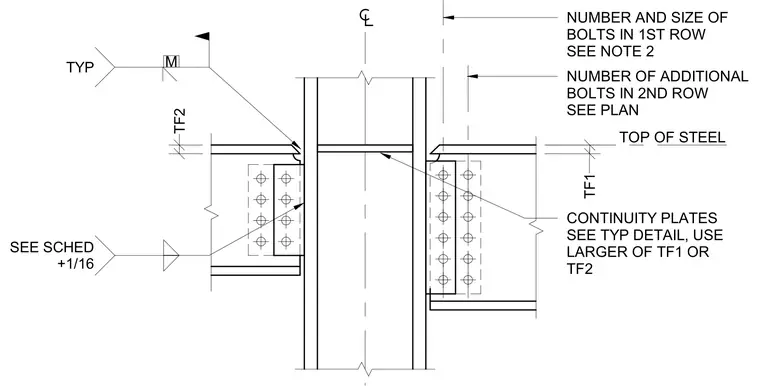

TOP OF STEEL CONTINUITY PLATES SEE TYP DETAIL, USE LARGER OF TF1 OR TF2 TYP M SEE SCHED +1/16 TF1 TF2 NUMBER AND SIZE OF BOLTS IN 1ST ROW SEE NOTE 2 NUMBER OF ADDITIONAL BOLTS IN 2ND ROW SEE PLAN
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
