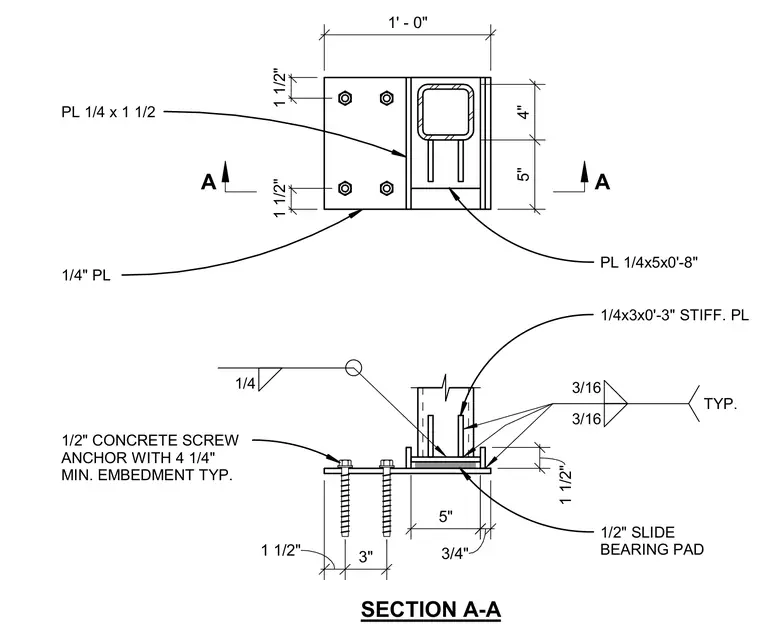

A structural steel stair post is welded to a base plate with three-sixteenth-inch typical fillet welds and reinforced by two quarter-inch by three-inch by zero-foot-three-inch stiffener plates. The base plate rests on a half-inch slide bearing pad and is secured to a concrete substrate using half-inch concrete screw anchors with a four-and-a-quarter-inch minimum embedment typical. Additional detailing includes a quarter-inch plate measuring five inches by zero-foot-eight-inches and a quarter-inch by one-and-a-half-inch plate.
1/4 1' - 0" 1 1/2" 1 1/2" 1 1/2" 1 1/2" 3" 3/16 3/16 TYP. 3/4" 5" 1/2" CONCRETE SCREW ANCHOR WITH 4 1/4" MIN. EMBEDMENT TYP. 1/2" SLIDE BEARING PAD PL 1/4x5x0'-8" PL 1/4 x 1 1/2 1/4" PL A SECTION A-A A 5" 4" 1/4x3x0'-3" STIFF. PL
