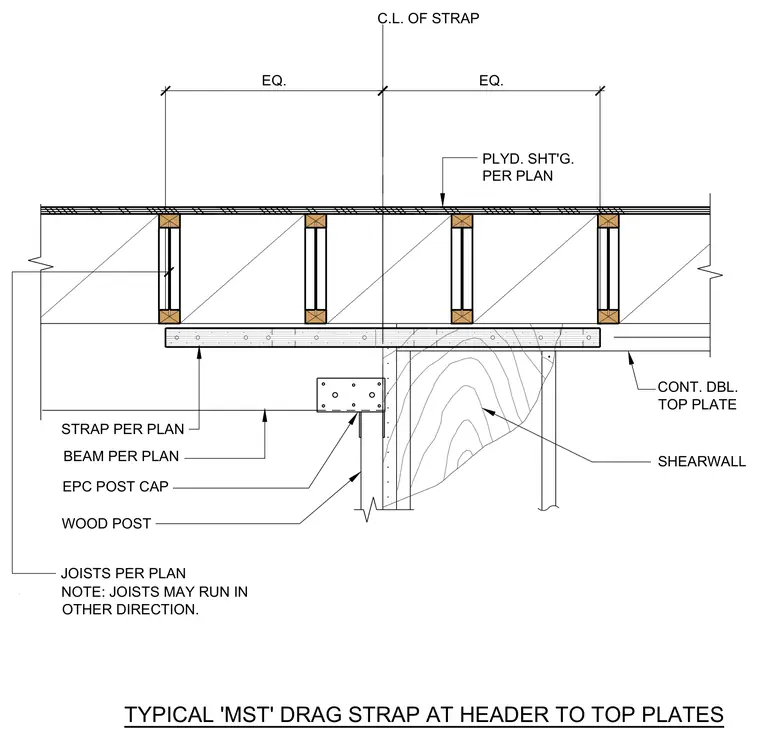

Wood floor or roof joists bear on continuous double top plates atop a shearwall. An EPC post cap connects a wood post to a beam per plan. A typical MST drag strap ties the header to the top plates.
EQ. EQ. JOISTS PER PLAN C.L. OF STRAP SHEARWALL BEAM PER PLAN EPC POST CAP WOOD POST STRAP PER PLAN NOTE: JOISTS MAY RUN IN OTHER DIRECTION. TYPICAL 'MST' DRAG STRAP AT HEADER TO TOP PLATES CONT. DBL. TOP PLATE PLYD. SHT'G. PER PLAN
