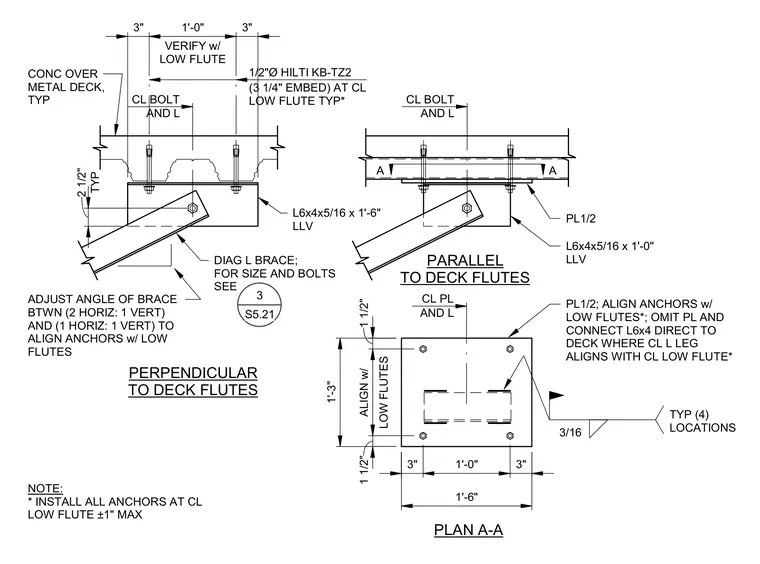

Brace connections to a concrete-filled metal deck are configured both perpendicular and parallel to the deck flutes. Hilti KB-TZ2 expansion anchors with a three-and-one-quarter-inch embedment secure the assembly at the centerline of the low flutes with a maximum one-inch tolerance. The connection utilizes L6x4x5/16 angles measuring one foot six inches for perpendicular runs and one foot for parallel runs, paired with half-inch gusset plates welded with three-sixteenth-inch fillet welds at four locations. The diagonal angle brace connects with bolts sized per plan, and the brace angle is adjusted between two-to-one and one-to-one slopes to align anchors with the low flutes. Gusset plates are omitted when the angle leg centerline aligns directly with the centerline of the low flute.
(3 1/4" EMBED) AT CL LOW FLUTE TYP* L6x4x5/16 x 1'-6" LLV CONC OVER METAL DECK, TYP ADJUST ANGLE OF BRACE BTWN (2 HORIZ: 1 VERT) AND (1 HORIZ: 1 VERT) TO ALIGN ANCHORS w/ LOW FLUTES L6x4x5/16 x 1'-0" LLV NOTE: * INSTALL ALL ANCHORS AT CL LOW FLUTE ±1" MAX DIAG L BRACE; FOR SIZE AND BOLTS SEE PERPENDICULAR TO DECK FLUTES PARALLEL TO DECK FLUTES VERIFY w/ LOW FLUTE PL1/2; ALIGN ANCHORS w/ LOW FLUTES*; OMIT PL AND CONNECT L6x4 DIRECT TO DECK WHERE CL L LEG ALIGNS WITH CL LOW FLUTE* PLAN A-A PL1/2 3/16 TYP (4) LOCATIONS A A 1'-3" 1'-6" 1 1/2" LOW FLUTES ALIGN w/ 1 1/2" 3" 1'-0" 3" TYP 2 1/2" 3" 1'-0" 3" CL BOLT AND L CL BOLT AND L 1/2"Ø HILTI KB-TZ2 CL PL AND L 3 S5.21
