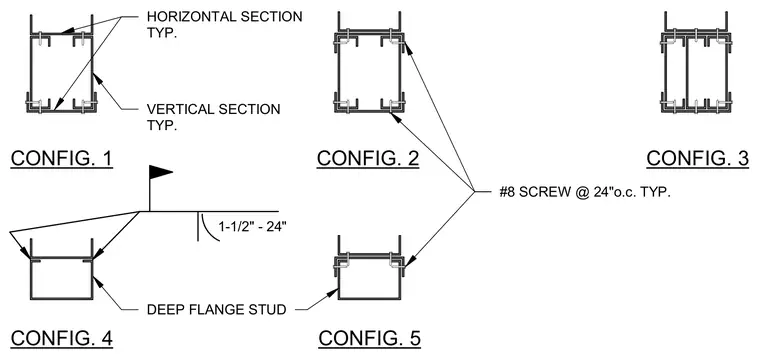

Deep flange studs are arranged in five distinct configurations using number 8 screws spaced at twenty-four inches on center typically. The assembly utilizes 1-1/2 inch by 24-inch deep flange studs joined with standard mechanical fasteners. Vertical and horizontal sections illustrate the typical framing details for each configuration.
CONFIG. 1 CONFIG. 2 CONFIG. 3 CONFIG. 4 1-1/2" - 24" DEEP FLANGE STUD CONFIG. 5 #8 SCREW @ 24"o.c. TYP. VERTICAL SECTION TYP. HORIZONTAL SECTION TYP.
