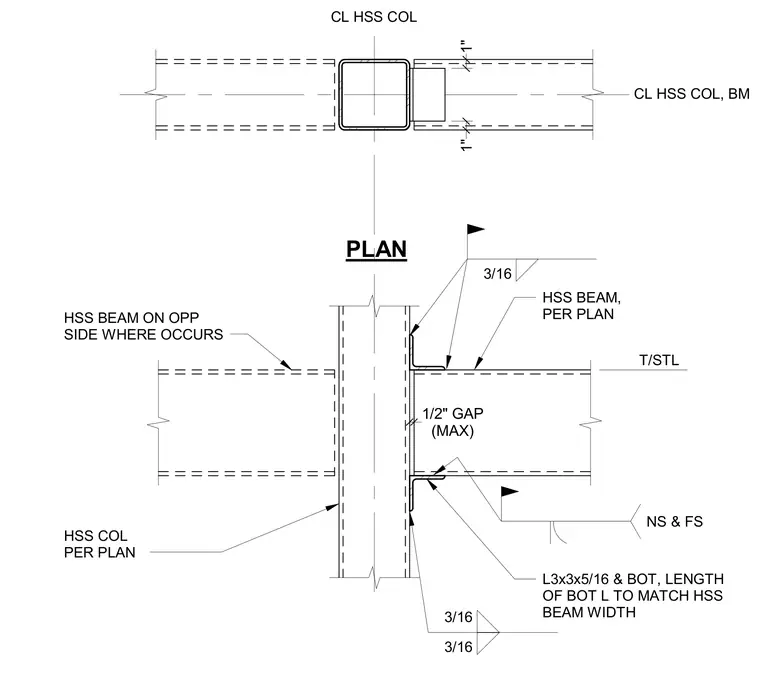

An HSS beam connects to an HSS column using L3x3x5/16 angles at the top and bottom with a maximum one-half inch gap. The bottom angle length matches the HSS beam width, welded with three-sixteenths inch fillet welds on near side and far side. An HSS beam frames into the opposite side of the column where required per plan.
T/STL 3/16 CL HSS COL, BM PLAN CL HSS COL HSS BEAM, PER PLAN HSS COL PER PLAN NS & FS L3x3x5/16 & BOT, LENGTH OF BOT L TO MATCH HSS BEAM WIDTH HSS BEAM ON OPP SIDE WHERE OCCURS (MAX) 1/2" GAP 3/16 3/16 1" 1"
