Structural · S-DRN2V

Housekeeping Pad Detail

Materials

Concrete Metal (misc.)

Elements

Floors / Slabs Decks Arches Anchors / Embeds Reinforcing

Connections

Rebar Splice / Development

About this detail

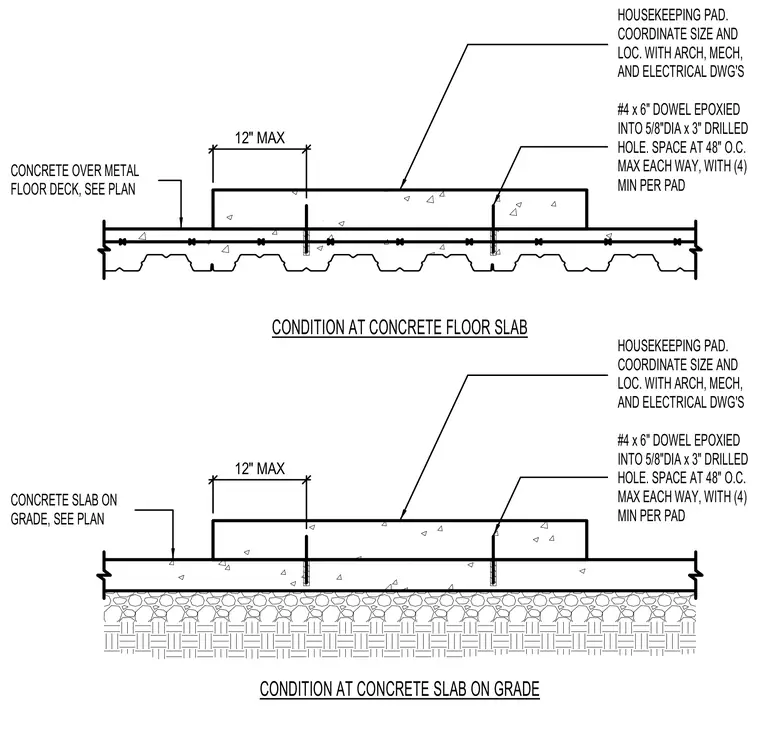

Housekeeping pads anchor to both a concrete over metal floor deck and a concrete slab on grade. Housekeeping pad size and location must be coordinated with architectural, mechanical, and electrical drawings. Each pad is doweled into the supporting slab using number four by six-inch steel dowels epoxied into five-eighth-inch diameter by three-inch drilled holes spaced at forty-eight inches on center. Reinforcing steel is placed at twelve inches maximum each way, with a minimum of four dowels per pad.
