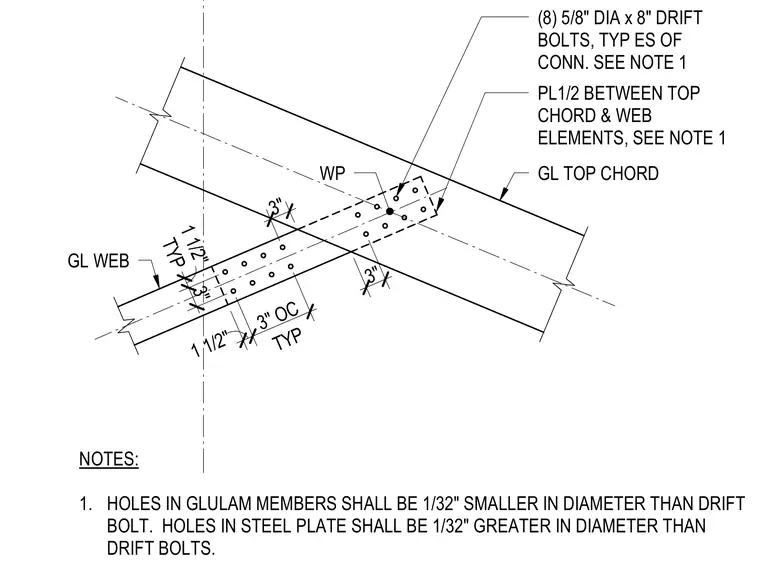

A glulam truss web member frames into a glulam top chord at a work point with an internal half-inch steel plate sandwiched between the members. Eight five-eighth-inch diameter by eight-inch-long drift bolts fasten each side of the connection. Hole diameters in the glulam members are one-thirty-second inch smaller than the drift bolts, while holes in the steel plate are one-thirty-second inch greater than the drift bolts. Bolt spacing is three inches on center typically, with one-and-a-half-inch edge distances.
NOTES: 1. HOLES IN GLULAM MEMBERS SHALL BE 1/32" SMALLER IN DIAMETER THAN DRIFT BOLT. HOLES IN STEEL PLATE SHALL BE 1/32" GREATER IN DIAMETER THAN DRIFT BOLTS. 3" 1 1/2" TYP 3" OC TYP 1 1/2" 3" 3" WP GL WEB (8) 5/8" DIA x 8" DRIFT BOLTS, TYP ES OF CONN. SEE NOTE 1 PL1/2 BETWEEN TOP CHORD & WEB ELEMENTS, SEE NOTE 1 GL TOP CHORD
