S-DRDD5 — Handrail 5 Detail

Structural · S-DRDD5

Handrail 5 Detail

Units: metric
Sheet: S-MB-8.10
Discipline: Structural

Materials

Elements

Railings / Guards

Connections

Base Plate / Anchorage Bolted Connection HSS Connection

Text on the drawing

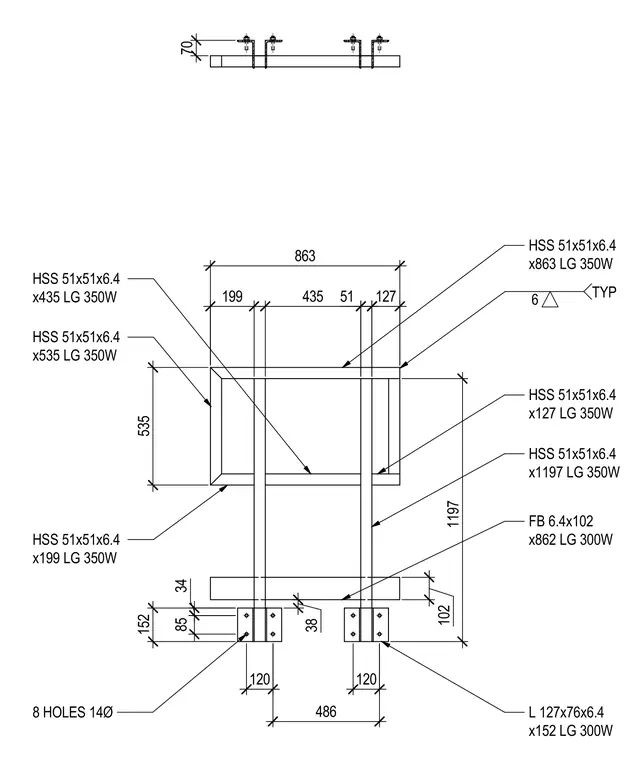

70 102 1197 120 486 120 38 34 85 152 127 435 199 535 863 51 HSS 51x51x6.4 x1197 LG 350W HSS 51x51x6.4 x863 LG 350W HSS 51x51x6.4 x535 LG 350W HSS 51x51x6.4 x435 LG 350W HSS 51x51x6.4 x127 LG 350W HSS 51x51x6.4 x199 LG 350W L 127x76x6.4 x152 LG 300W FB 6.4x102 x862 LG 300W 8 HOLES 14Ø 6 TYP
