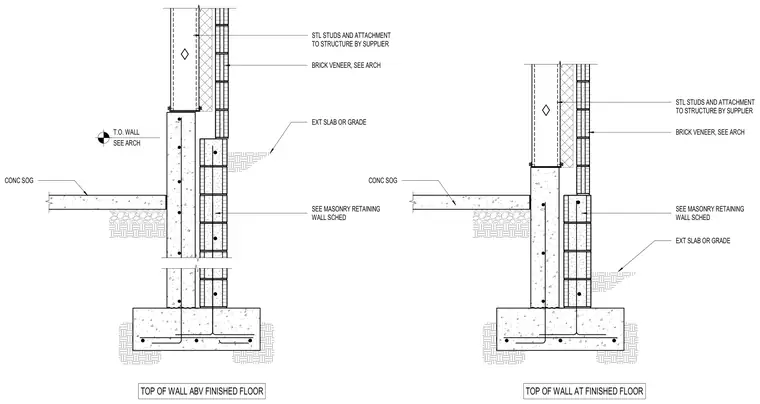

The assembly features a concrete foundation wall bearing on a continuous concrete footing reinforced with steel rebar. A concrete slab on grade ties into the interior face of the foundation wall. An exterior masonry retaining wall, per the masonry retaining wall schedule, supports a brick veneer and exterior wall framing consisting of steel studs with attachment to the structure provided by the supplier.
CONC SOG EXT SLAB OR GRADE TOP OF WALL ABV FINISHED FLOOR BRICK VENEER, SEE ARCH STL STUDS AND ATTACHMENT TO STRUCTURE BY SUPPLIER T.O. WALL SEE ARCH CONC SOG EXT SLAB OR GRADE TOP OF WALL AT FINISHED FLOOR BRICK VENEER, SEE ARCH STL STUDS AND ATTACHMENT TO STRUCTURE BY SUPPLIER SEE MASONRY RETAINING WALL SCHED SEE MASONRY RETAINING WALL SCHED
