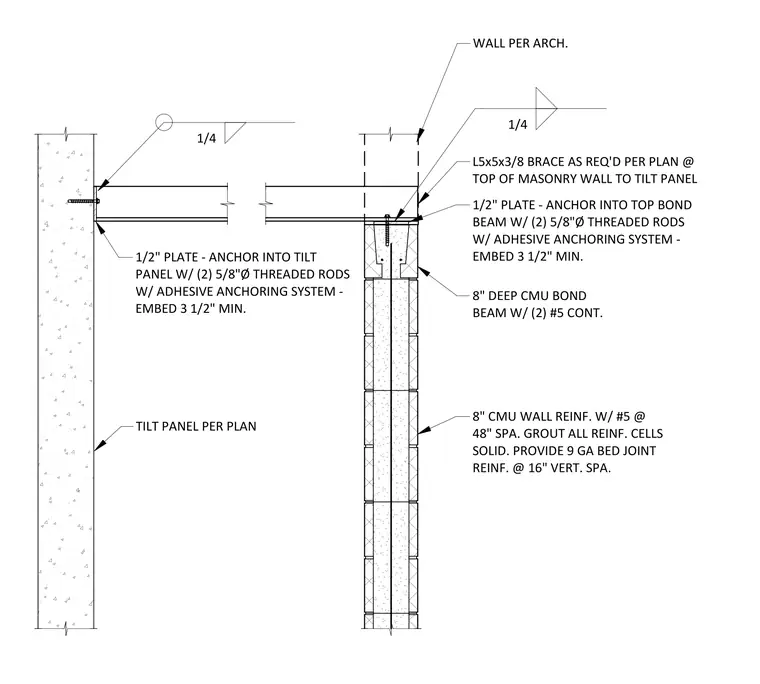

This assembly connects a tilt-up concrete panel to the top of a concrete masonry unit wall using an L5x5x3/8 steel angle brace. The connection utilizes one-half inch thick steel plates anchored into both the tilt-up panel and the eight-inch deep CMU bond beam. Each plate is secured with two five-eighths inch diameter threaded rods installed with an adhesive anchoring system, requiring a minimum embedment of three and one-half inches. The CMU wall features two number five continuous reinforcing bars within the bond beam and number five vertical reinforcing bars spaced at forty-eight inches on center, with all reinforced cells grouted solid. Nine-gauge bed joint reinforcement is provided at sixteen inches vertical spacing.
Text on the drawing
L5x5x3/8 BRACE AS REQ'D PER PLAN @ TOP OF MASONRY WALL TO TILT PANEL 8" DEEP CMU BOND BEAM W/ (2) #5 CONT. 8" CMU WALL REINF. W/ #5 @ 48" SPA. GROUT ALL REINF. CELLS SOLID. PROVIDE 9 GA BED JOINT REINF. @ 16" VERT. SPA. TILT PANEL PER PLAN 1/4 1/2" PLATE - ANCHOR INTO TOP BOND BEAM W/ (2) 5/8"Ø THREADED RODS W/ ADHESIVE ANCHORING SYSTEM - EMBED 3 1/2" MIN. 1/4 1/2" PLATE - ANCHOR INTO TILT PANEL W/ (2) 5/8"Ø THREADED RODS W/ ADHESIVE ANCHORING SYSTEM - EMBED 3 1/2" MIN. WALL PER ARCH.
