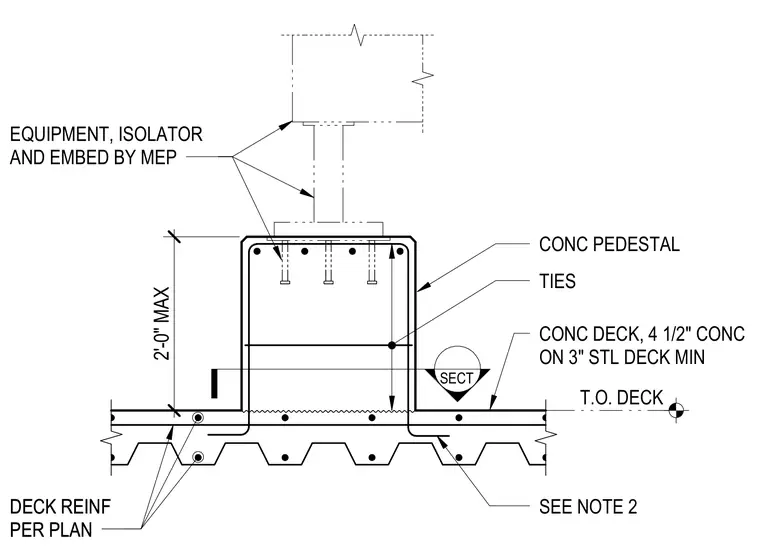

Equipment, isolators, and embed plates are provided by the mechanical, electrical, and plumbing contractor atop a concrete pedestal. The pedestal reaches a maximum height of two feet above the top of the deck and contains internal ties and reinforcement. The concrete deck consists of four and one-half inches of concrete on a three-inch minimum steel deck with deck reinforcement per plan.
SECT T.O. DECK 2'-0" MAX CONC DECK, 4 1/2" CONC ON 3" STL DECK MIN TIES CONC PEDESTAL EQUIPMENT, ISOLATOR AND EMBED BY MEP DECK REINF PER PLAN DECK REINF PER PLAN SEE NOTE 2
