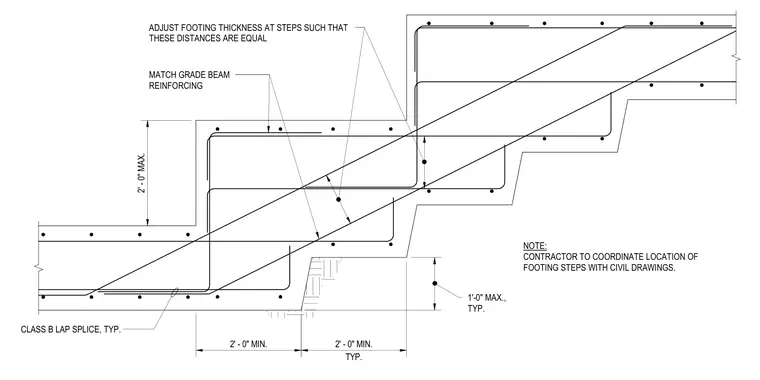

Concrete grade beam steps incorporate continuous longitudinal reinforcing matching the main beam sizing with class B lap splices provided typically. The footing thickness adjusts at each step to maintain specified minimum and maximum vertical and horizontal offset distances. The contractor must coordinate footing step locations with civil drawings prior to construction.
NOTE: CONTRACTOR TO COORDINATE LOCATION OF FOOTING STEPS WITH CIVIL DRAWINGS. MATCH GRADE BEAM REINFORCING CLASS B LAP SPLICE, TYP. TYP. 2' - 0" MIN. 2' - 0" MAX. ADJUST FOOTING THICKNESS AT STEPS SUCH THAT THESE DISTANCES ARE EQUAL 2' - 0" MIN. 1'-0" MAX., TYP.
