An elevated rail support consisting of a vertical LSL member receives a 3/8-inch by 7-inch by 8-inch cap plate connected with two bolts finger tightened only at a 4-inch gauge. This support bears on a structural steel beam connected via full-depth shear plates sized per plan, with three-sixteenth-inch typical fillet welds. The floor assembly comprises a lightweight concrete topping slab on geofoam over a metal roof deck, bounded by a continuous 18-gauge pour stop at the slab edge. A one-quarter-inch continuous fillet weld secures the structural steel framing at the elevation line TOC EL 135'-0".

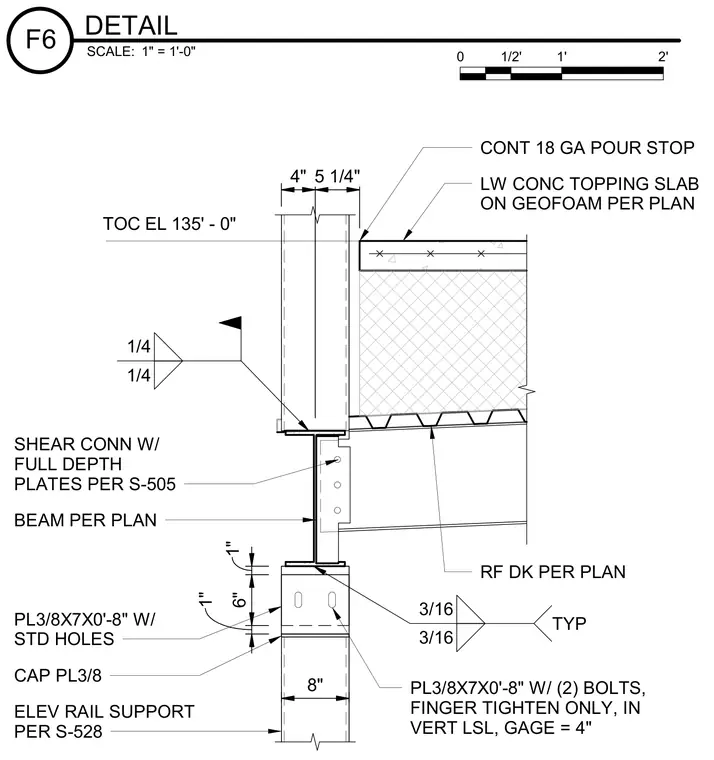

ELEV RAIL SUPPORT PER S-528 CAP PL3/8 PL3/8X7X0'-8" W/ STD HOLES PL3/8X7X0'-8" W/ (2) BOLTS, FINGER TIGHTEN ONLY, IN VERT LSL, GAGE = 4" 3/16 3/16 TYP 1" 6" 1" SHEAR CONN W/ FULL DEPTH PLATES PER S-505 BEAM PER PLAN 8" RF DK PER PLAN LW CONC TOPPING SLAB ON GEOFOAM PER PLAN 1/4 1/4 CONT 18 GA POUR STOP 4" 5 1/4" TOC EL 135' - 0" SCALE: 1" = 1'-0" F6 DETAIL 0 1/2' 1' 2'
