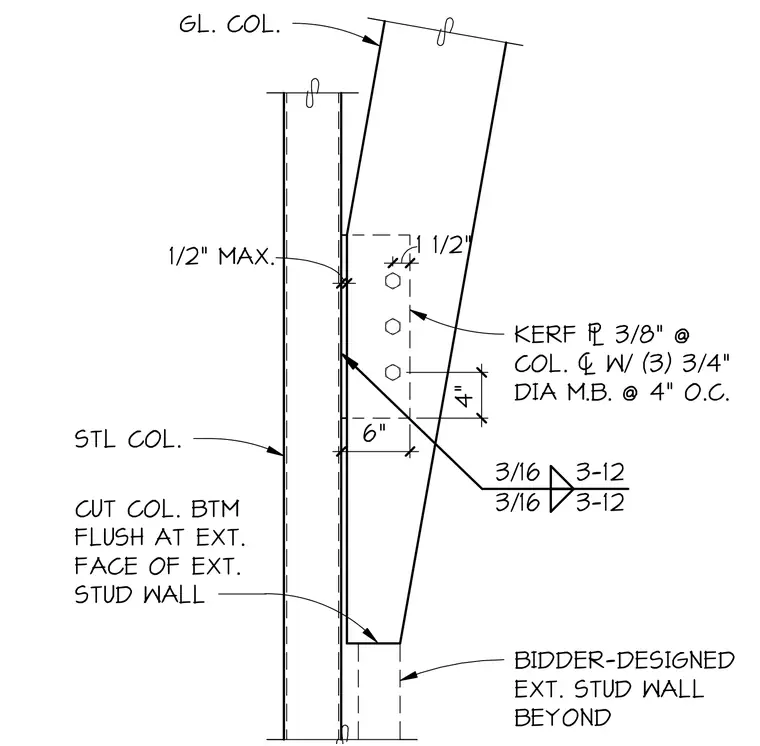

A glued-laminated timber column is slotted at its centerline to receive a three-eighths-inch kerf plate connected by three three-quarter-inch-diameter machine bolts spaced at four inches on center. The kerf plate is welded to the web or flange of the structural steel column. The bottom of the cut glued-laminated timber column sits flush at the exterior face of the exterior stud wall below. A bidder-designed exterior stud wall runs beyond the connection.
6" GL. COL. KERF 3/8" @ COL. W/ (3) 3/4" DIA M.B. @ 4" O.C. 1 1/2" 1/2" MAX. 4" 3/16 3-12 3/16 3-12 BIDDER-DESIGNED EXT. STUD WALL BEYOND CUT COL. BTM FLUSH AT EXT. FACE OF EXT. STUD WALL STL COL.
