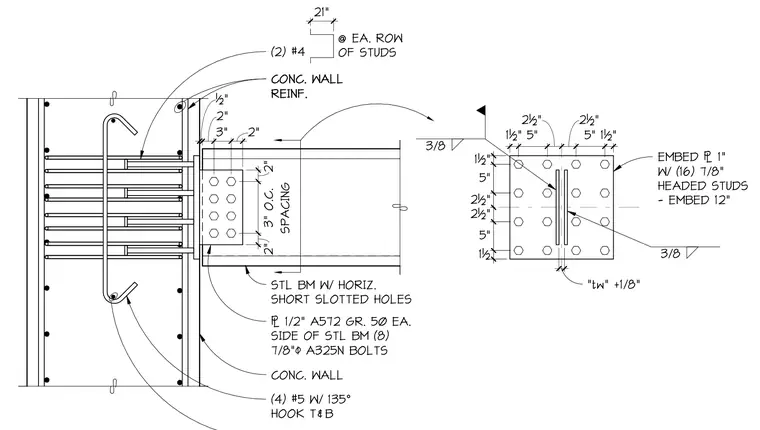

A structural steel beam with horizontal short slotted holes connects to a concrete wall using a half-inch ASTM A572 Grade 50 plate on each side of the steel beam, secured with eight seven-eighth-inch diameter A325-N bolts. The connection is anchored to the concrete wall by a one-inch embedment plate featuring sixteen seven-eighth-inch headed studs embedded twelve inches into the concrete. The concrete wall is reinforced with vertical and horizontal bars, including four number-five bars with 135-degree hooks top and bottom, and two number-four bars at each row of studs. Three-eighths-inch fillet welds secure the connection plates.
½" 2" 3" 2" 2" SPACING 3" O.C. 2" CONC. WALL 1/2" A572 GR. 50 EA. SIDE OF STL BM (8) 7/8"+ A325N BOLTS STL BM W/ HORIZ. SHORT SLOTTED HOLES (4) #5 W/ 135° HOOK T&B CONC. WALL REINF. CONC. WALL REINF. (2) #4 @ EA. ROW OF STUDS 21" 1½" 5" 2½" 2½" 5" 1½ 1½" 5" 2½" 2½" 5" 1½" 1 " "tw" +1/8" EMBED 1" W/ (16) 7/8" HEADED STUDS - EMBED 12" 3/8 3/8
