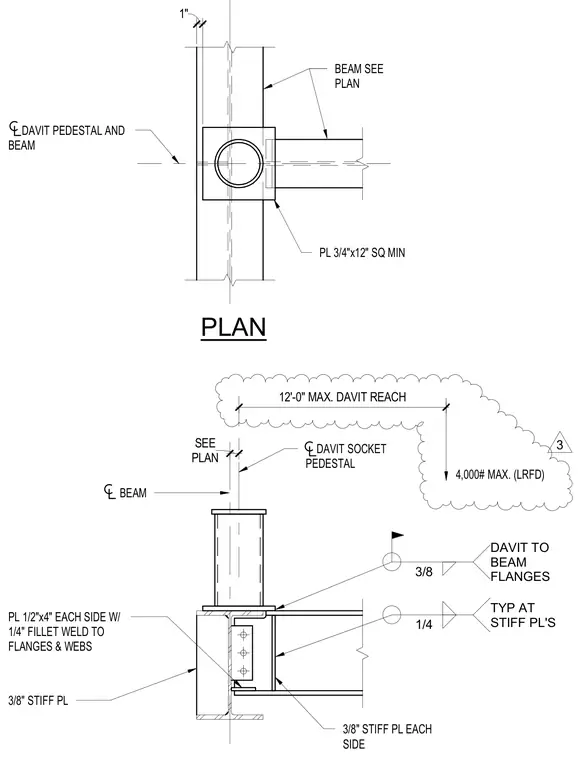

A square davit socket pedestal sits atop a structural steel beam, supported by three-eighths-inch stiffener plates on each side welded to the beam flanges and webs with quarter-inch fillet welds. A three-quarter-inch by twelve-inch square minimum base plate distributes the load, while the connection to the beam flanges utilizes a three-eighths-inch weld. The structural assembly accommodates a maximum davit reach of twelve feet and a maximum capacity of 4,000 pounds under Load and Resistance Factor Design.
PLAN 3/8" STIFF PL PL 1/2"x4" EACH SIDE W/ 1/4" FILLET WELD TO FLANGES & WEBS BEAM 3/8" STIFF PL EACH SIDE DAVIT SOCKET PEDESTAL PL 3/4"x12" SQ MIN DAVIT PEDESTAL AND BEAM BEAM SEE PLAN PLAN SEE 3/8 DAVIT TO BEAM FLANGES 1/4 TYP AT STIFF PL'S 1" 12'-0" MAX. DAVIT REACH 4,000# MAX. (LRFD) 3
