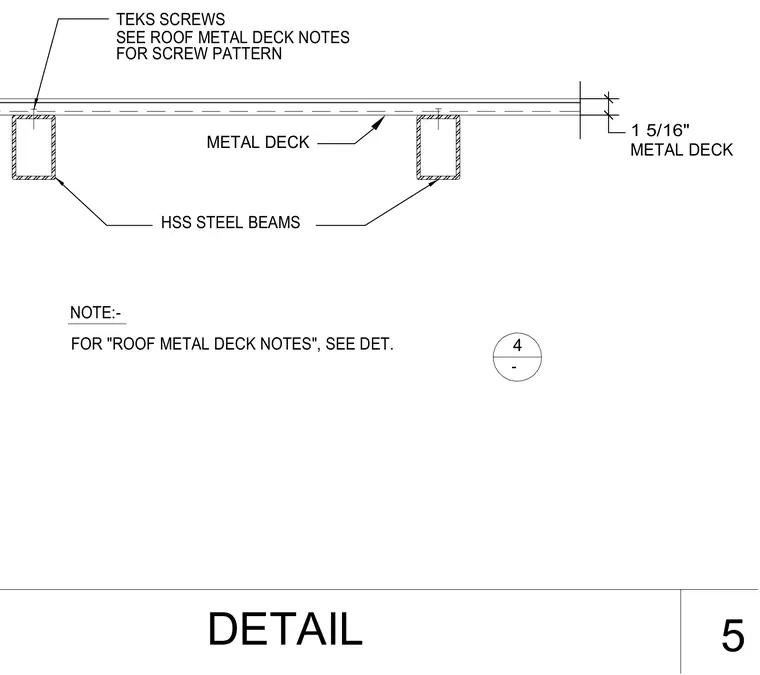

Metal roof deck bears across hollow structural section steel beams and is fastened with Tek-screws following the pattern indicated in the roof metal deck notes. The assembly establishes the structural roof diaphragm connection over steel framing.
NOTE:- METAL DECK 1 5/16" HSS STEEL BEAMS METAL DECK TEKS SCREWS SEE ROOF METAL DECK NOTES FOR SCREW PATTERN FOR "ROOF METAL DECK NOTES", SEE DET. DETAIL 5 4 -
