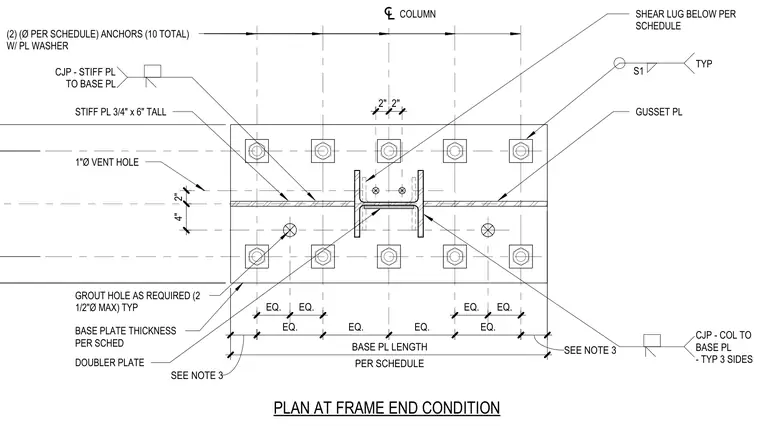

This structural plan view details a steel column base plate assembly for a frame end condition. The steel column is welded to the base plate with a complete joint penetration weld on three sides per the schedule. Ten anchor bolts with plate washers secure the assembly, complemented by 3/4-inch by 6-inch tall stiffener plates welded to the base plate using complete joint penetration welds. Gusset plates intersect the column and base plate, accompanied by a shear lug located below as specified. The base plate features a 1-inch diameter vent hole and grout holes with a maximum diameter of 2-1/2 inches.
GROUT HOLE AS REQUIRED (2 1/2"Ø MAX) TYP DOUBLER PLATE PLAN AT FRAME END CONDITION (2) (Ø PER SCHEDULE) ANCHORS (10 TOTAL) W/ PL WASHER COLUMN STIFF PL 3/4" x 6" TALL BASE PLATE THICKNESS PER SCHED PER SCHEDULE BASE PL LENGTH SEE NOTE 3 EQ. EQ. EQ. EQ. CJP - COL TO BASE PL - TYP 3 SIDES SEE NOTE 3 EQ. EQ. 2" 4" EQ. EQ. CJP - STIFF PL TO BASE PL GUSSET PL S1 TYP 2" 2" 1"Ø VENT HOLE SHEAR LUG BELOW PER SCHEDULE
