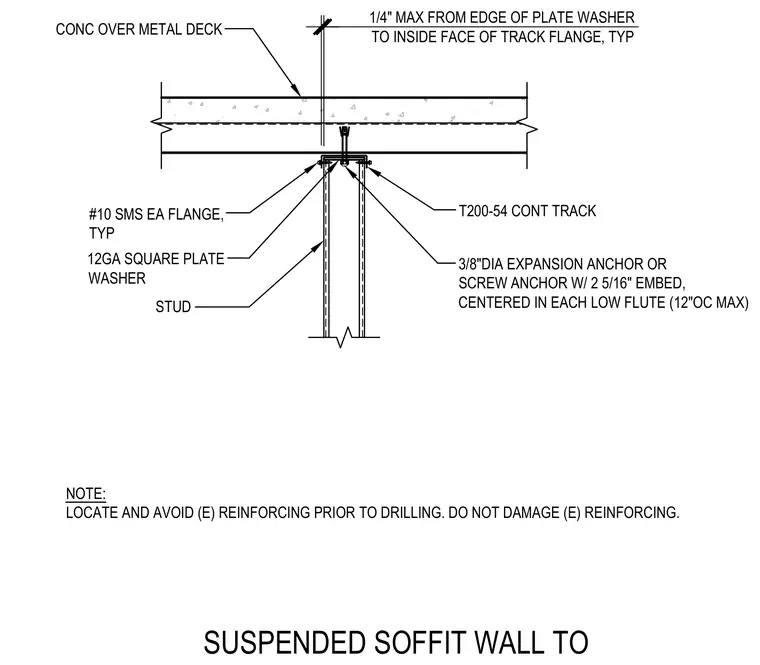

A continuous steel track connects to a concrete-filled metal deck overhead using three-eighths-inch diameter expansion anchors or screw anchors with two and five-sixteenths-inch embedment centered in each low flute at a maximum of twelve inches on center. A twelve-gauge square plate washer sits beneath each anchor, maintained at a maximum distance of one-quarter inch from the edge of the plate washer to the inside face of the track flange. Metal stud framing attaches to the continuous track with number ten self-tapping sheet metal screws at each flange. Existing concrete reinforcing must be located and avoided prior to drilling to prevent damage. A clearance of one-quarter inch is maintained from the edge of the plate washer to the inside face of the track flange.
CONC OVER METAL DECK 3/8"DIA EXPANSION ANCHOR OR SCREW ANCHOR W/ 2 5/16" EMBED, CENTERED IN EACH LOW FLUTE (12"OC MAX) T200-54 CONT TRACK #10 SMS EA FLANGE, TYP STUD NOTE: LOCATE AND AVOID (E) REINFORCING PRIOR TO DRILLING. DO NOT DAMAGE (E) REINFORCING. 12GA SQUARE PLATE WASHER 1/4" MAX FROM EDGE OF PLATE WASHER TO INSIDE FACE OF TRACK FLANGE, TYP SUSPENDED SOFFIT WALL TO
