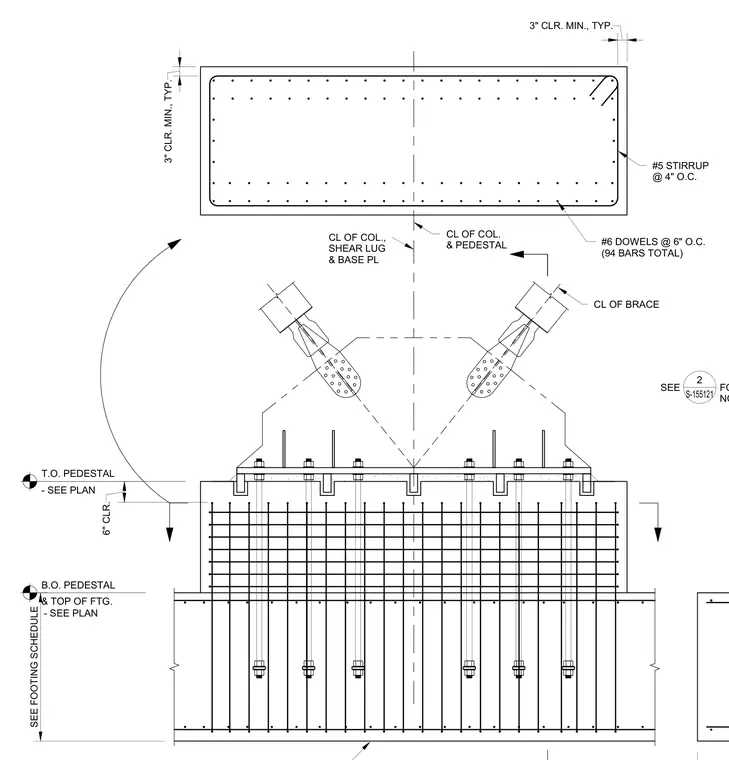

A structural braced frame gusset plate connects to a base plate and shear lug anchored atop a reinforced concrete pedestal. The pedestal contains number five stirrups at four inches on center and number six dowels at six inches on center totaling ninety-four bars, with a three-inch minimum clearance typical. The assembly rests on a concrete footing with elevations defined for top of pedestal and bottom of pedestal and top of footing sized per plan.
B.O. PEDESTAL & TOP OF FTG. SEE FOOTING SCHEDULE #5 STIRRUP @ 4" O.C. #6 DOWELS @ 6" O.C. (94 BARS TOTAL) CL OF COL. & PEDESTAL 3" CLR. MIN., TYP. 3" CLR. MIN., TYP. T.O. PEDESTAL - SEE PLAN - SEE PLAN CL OF BRACE 6" CLR. CL OF COL., SHEAR LUG & BASE PL SEE FOR NOTES NOT SHOWN 2 S-155121
