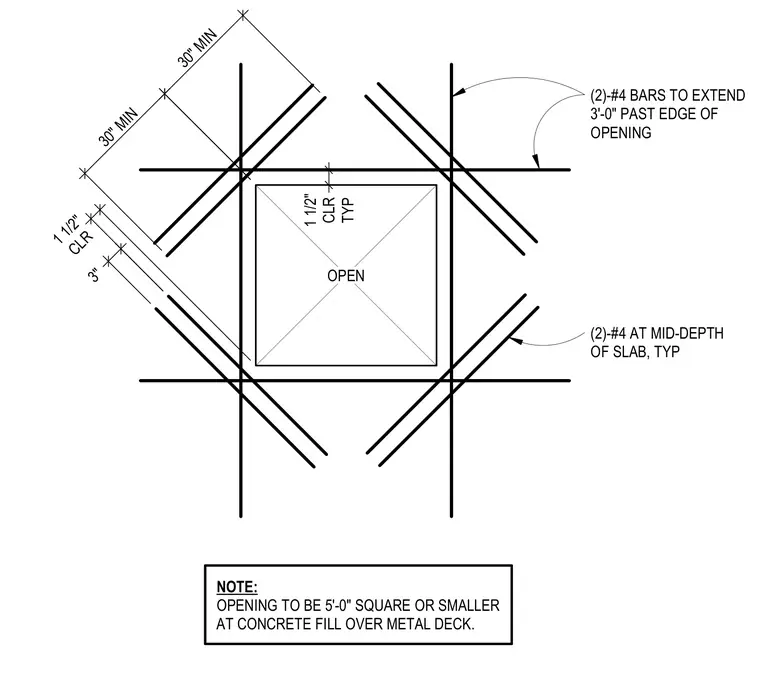

Reinforcing layout around slab openings in concrete fill over metal deck for openings five feet square or smaller. Two number four bars are placed at mid-depth of the slab on each side of the opening, extending three feet past the edge of the opening. Additional diagonal bars and clear spacing dimensions of one and a half inches are maintained around the penetration per the drawing notes.
1 1/2" CLR TYP 30" MIN 30" MIN 1 1/2" CLR 3" OPEN NOTE: OPENING TO BE 5'-0" SQUARE OR SMALLER AT CONCRETE FILL OVER METAL DECK. (2)-#4 BARS TO EXTEND 3'-0" PAST EDGE OF OPENING (2)-#4 AT MID-DEPTH OF SLAB, TYP
