Structural · S-DPD7Y

Steel Beam and Metal Deck Bearing at Concrete Tilt-Up Wall Panel

Materials

Concrete Steel Metal (misc.)

Elements

Beams Walls Floors / Slabs Decks Anchors / Embeds

Connections

Embed Plate

About this detail

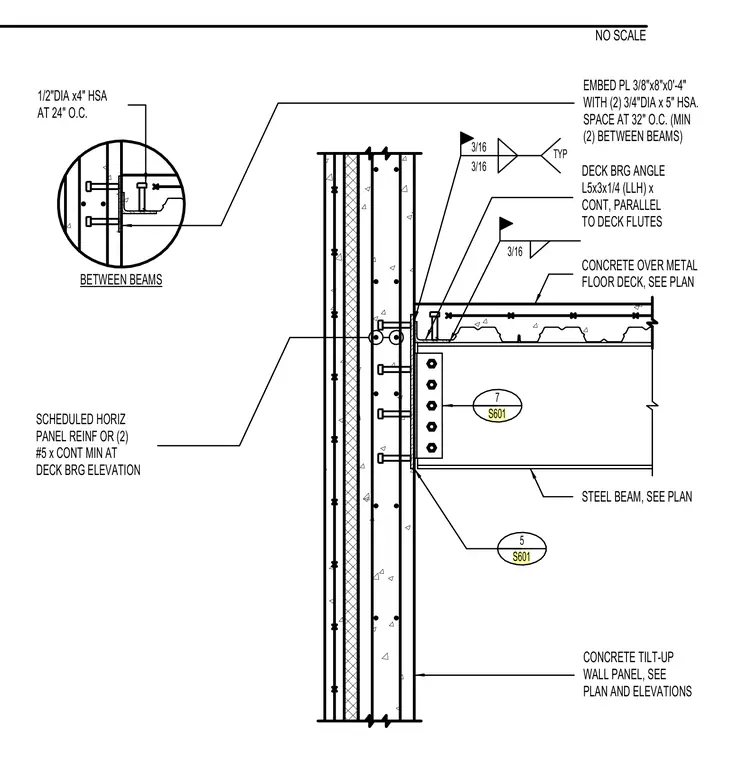

A steel beam frames into a concrete tilt-up wall panel, carrying a concrete-filled metal floor deck that bears on a continuous L5x3x1/4 angle aligned parallel to the deck flutes. The wall panel is secured with an embed plate measuring three-eighths by eight inches by four inches, welded with three-quarter-inch diameter by five-inch headed stud anchors spaced at thirty-two inches on center with a minimum of two anchors between beams, supplemented by half-inch diameter by four-inch headed stud anchors at twenty-four inches on center. Horizontal panel reinforcement consists of scheduled steel or a minimum of two continuous number five bars located at the deck bearing elevation. A three-sixteenths-inch fillet weld connects the bearing angle and associated structural components as specified in the framing plan.
