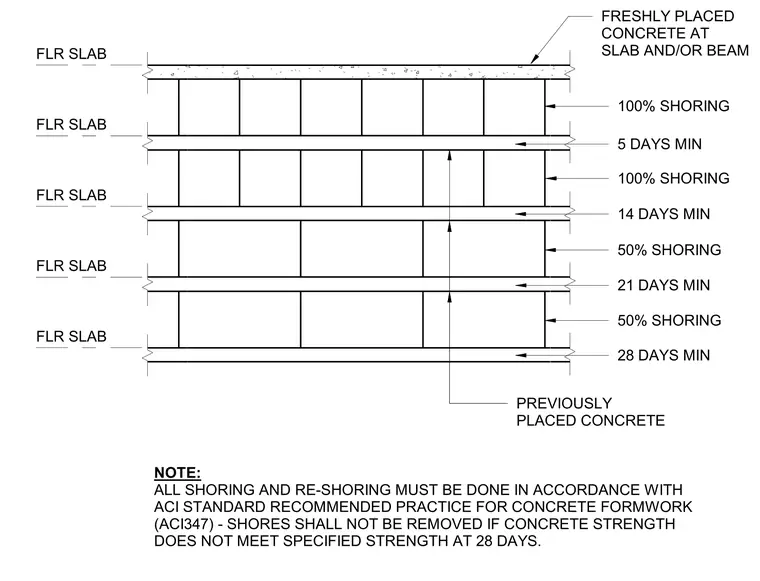

Multistory concrete floor slabs and beams require specific percentages of temporary shoring and re-shoring based on the age of the freshly placed and previously placed concrete. Freshly placed concrete at the top floor level requires one hundred percent shoring. Lower levels require varying durations of fifty percent and one hundred percent shoring, ranging from five days to twenty-eight days minimum. All shoring and re-shoring operations must comply with ACI standard recommended practice for concrete formwork, and shores shall not be removed if concrete strength fails to meet the specified strength at twenty-eight days.
5 DAYS MIN 50% SHORING 28 DAYS MIN 21 DAYS MIN 50% SHORING 14 DAYS MIN 100% SHORING 100% SHORING FRESHLY PLACED CONCRETE AT SLAB AND/OR BEAM PREVIOUSLY PLACED CONCRETE NOTE: ALL SHORING AND RE-SHORING MUST BE DONE IN ACCORDANCE WITH ACI STANDARD RECOMMENDED PRACTICE FOR CONCRETE FORMWORK (ACI347) - SHORES SHALL NOT BE REMOVED IF CONCRETE STRENGTH DOES NOT MEET SPECIFIED STRENGTH AT 28 DAYS. FLR SLAB FLR SLAB FLR SLAB FLR SLAB FLR SLAB
