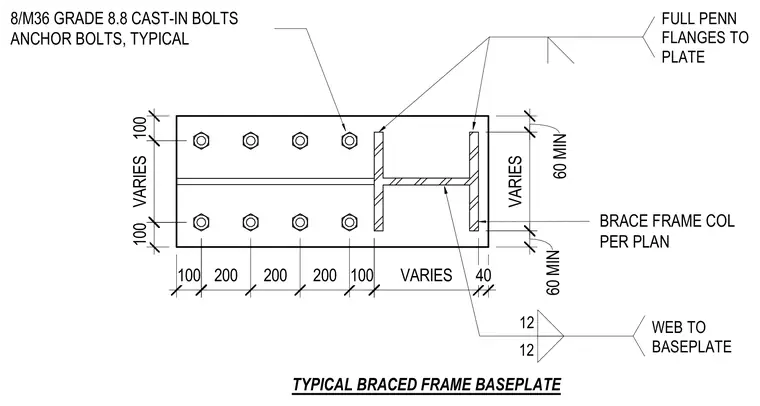

A typical braced frame column baseplate connection is anchored by eight M36 Grade 8.8 cast-in anchor bolts arranged symmetrically around the column profile. The column flanges connect to the baseplate with full penetration welds, while the web connects via fillet welds sized at 12 millimeters on both sides. Dimensions dictate specific edge and spacing clearances, including sixty millimeter minimums and varying pitch dimensions per plan.
TYPICAL BRACED FRAME BASEPLATE BRACE FRAME COL PER PLAN FULL PENN FLANGES TO PLATE 100 100 200 200 200 100 8/M36 GRADE 8.8 CAST-IN BOLTS ANCHOR BOLTS, TYPICAL 100 60 MIN 60 MIN VARIES VARIES 40 VARIES 12 12 WEB TO BASEPLATE
