A concrete ramp or concrete slab connects to a seven-inch concrete wall panel through dowel reinforcing bars. Number four reinforcing bars, three feet zero inches long, are spaced at twenty-four inches on center and embedded into the wall using epoxy adhesive. Special inspection is required for the epoxy-set anchor installation.

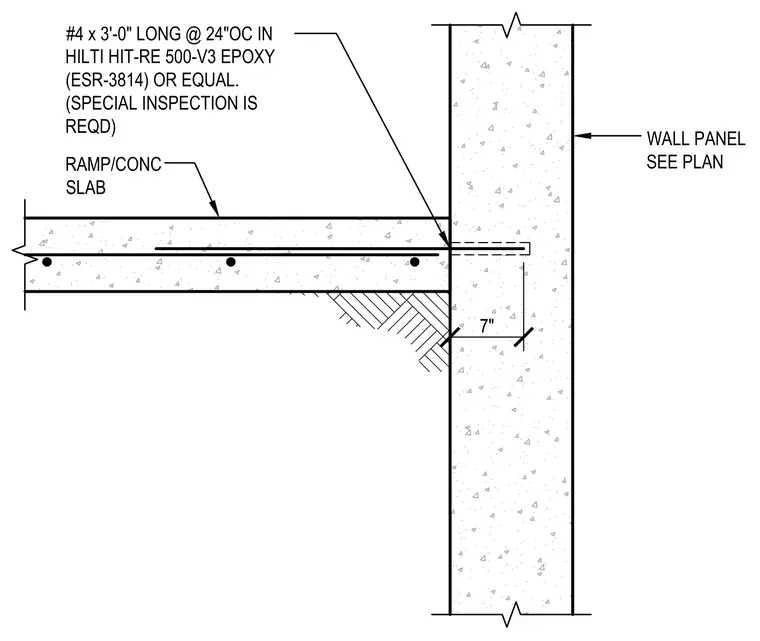

7" WALL PANEL SEE PLAN RAMP/CONC SLAB #4 x 3'-0" LONG @ 24"OC IN HILTI HIT-RE 500-V3 EPOXY (ESR-3814) OR EQUAL. (SPECIAL INSPECTION IS REQD)
