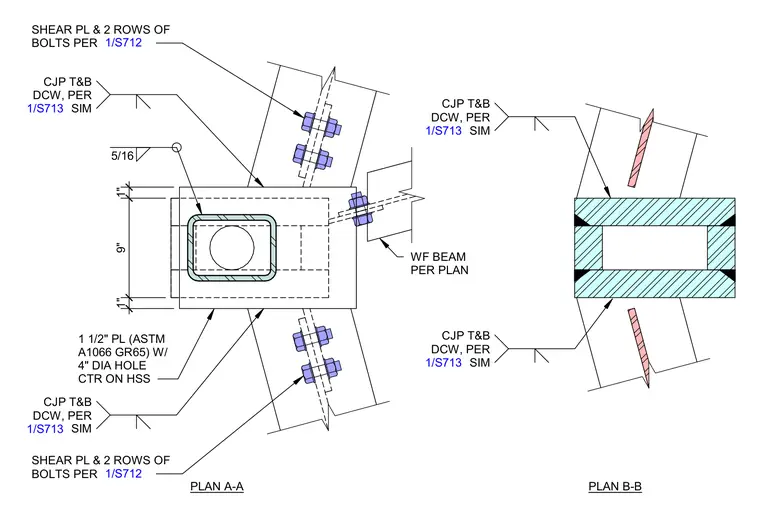

A wide-flange beam connects to an HSS column through a welded shear plate and two rows of bolts. The connection utilizes a 1-1/2 inch thick ASTM A1066 Grade 65 plate with a 4-inch diameter hole centered on the HSS, welded with complete joint penetration top and bottom. Five-sixteenths inch fillet welds secure the components. Additional shear plates with two rows of bolts provide framing attachments per plan.
1" 9" 1" 1 1/2" PL (ASTM A1066 GR65) W/ 4" DIA HOLE CTR ON HSS CJP T&B DCW, PER SIM 5/16 PLAN A-A PLAN B-B 1/S713 WF BEAM PER PLAN CJP T&B DCW, PER SIM 1/S713 CJP T&B DCW, PER SIM 1/S713 CJP T&B DCW, PER SIM 1/S713 SHEAR PL & 2 ROWS OF BOLTS PER 1/S712 SHEAR PL & 2 ROWS OF BOLTS PER 1/S712
