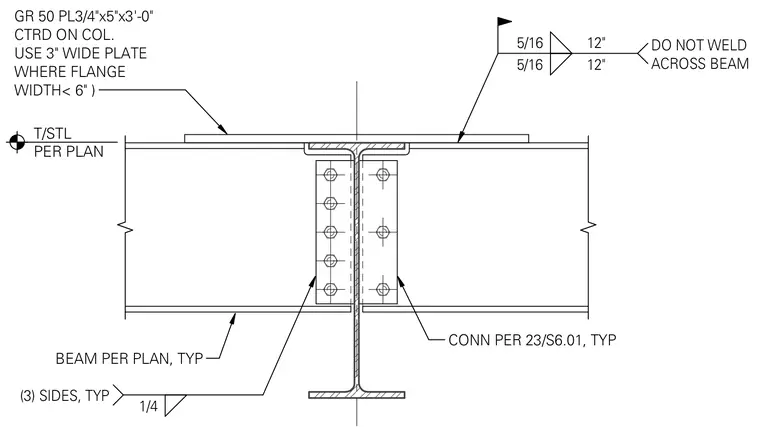

A Grade 50 three-quarter-inch by five-inch by three-foot-long plate centers on the column across the top flange of the beam, utilizing a three-inch wide plate where the flange width is less than six inches. Five-sixteenth-inch fillet welds attach the plate with instructions left unwelded across the beam. Typical connections are specified per plan and detail 23/S6.01, utilizing quarter-inch fillet welds on three sides.
GR 50 PL3/4"x5"x3'-0" CTRD ON COL. USE 3" WIDE PLATE WHERE FLANGE WIDTH< 6" ) 5/16 12" 5/16 12" DO NOT WELD ACROSS BEAM BEAM PER PLAN, TYP CONN PER 23/S6.01, TYP 1/4 (3) SIDES, TYP T/STL PER PLAN
