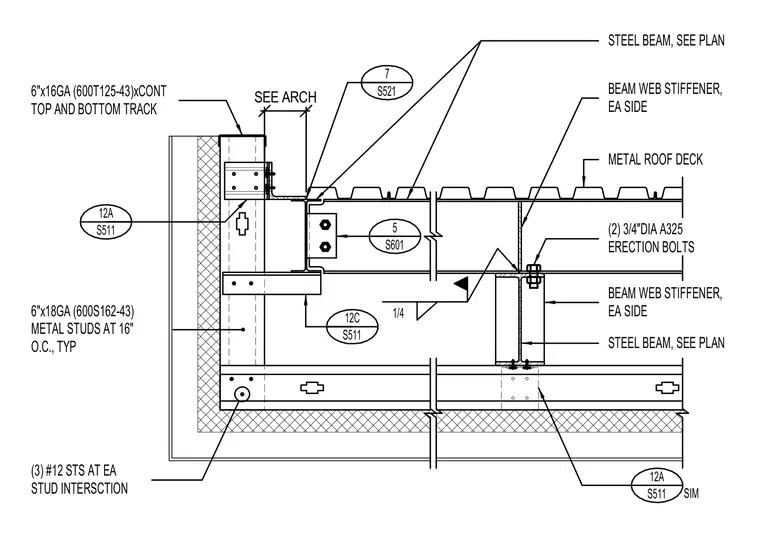

A structural steel beam connects to a perimeter cold-formed steel framing assembly supporting a metal roof deck. Cold-formed steel framing consists of continuous six-inch 16-gauge top and bottom tracks with six-inch 18-gauge metal studs spaced at sixteen inches on center. Three number twelve self-tapping screws secure each stud intersection. Beam web stiffeners are provided on each side of the steel beam web. Two three-quarter-inch diameter A325 erection bolts connect the structural members.
SEE ARCH STEEL BEAM, SEE PLAN STEEL BEAM, SEE PLAN METAL ROOF DECK 1/4 6"x16GA (600T125-43)xCONT TOP AND BOTTOM TRACK 6"x18GA (600S162-43) METAL STUDS AT 16" O.C., TYP (3) #12 STS AT EA STUD INTERSCTION BEAM WEB STIFFENER, EA SIDE BEAM WEB STIFFENER, EA SIDE (2) 3/4"DIA A325 ERECTION BOLTS 5 S601 7 S521 12A S511 12C S511 12A S511 SIM
