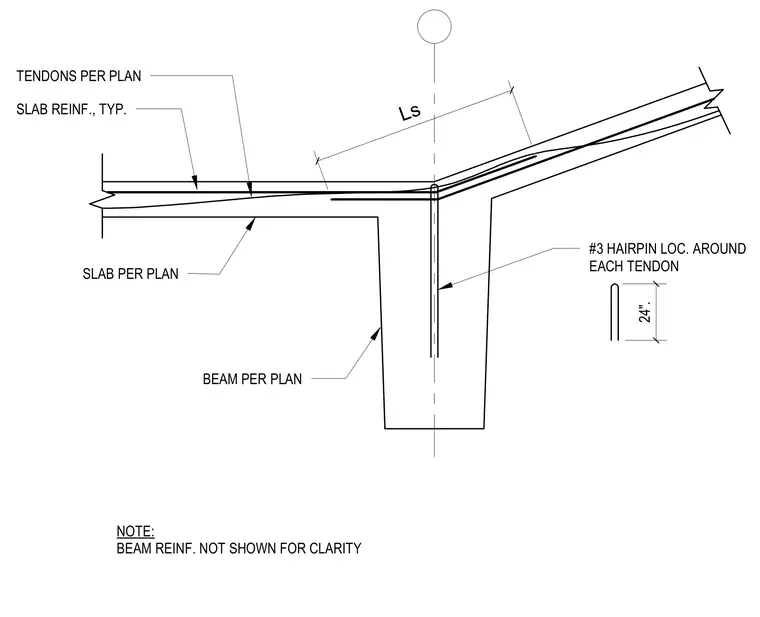

Post-tensioned concrete ramp slabs transition across a support beam sized per plan with tendons and typical slab reinforcement routed through the junction. A number 3 hairpin is located around each tendon with a dimension of twenty-four inches. Beam reinforcement is omitted from the view for clarity.
Ls TENDONS PER PLAN SLAB REINF., TYP. SLAB PER PLAN BEAM PER PLAN #3 HAIRPIN LOC. AROUND EACH TENDON NOTE: BEAM REINF. NOT SHOWN FOR CLARITY 24".
