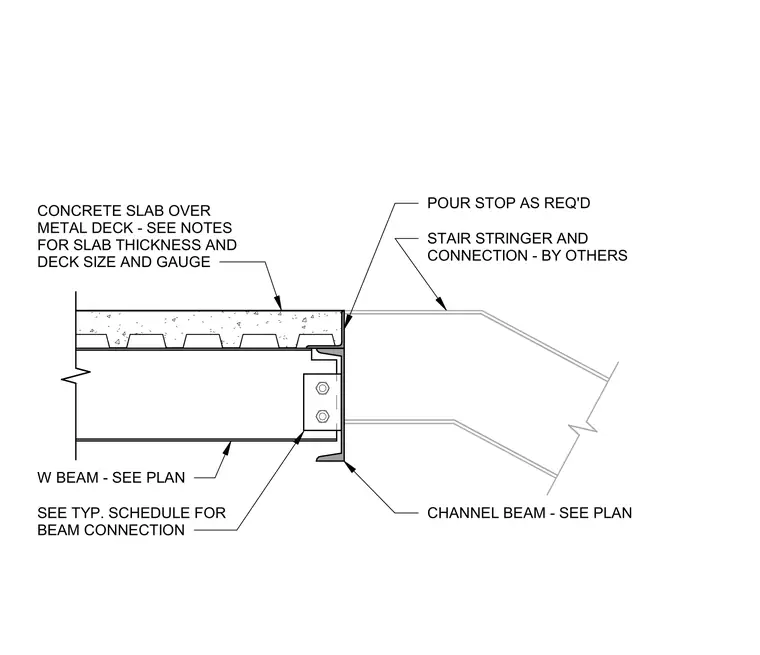

A wide-flange beam supports a concrete slab over metal deck, with slab thickness and deck gauge determined by project notes. A channel beam acts as a header at the floor edge, providing a mounting surface for the stair stringer. The stair stringer and its specific connection are provided by others. A pour stop is installed at the slab edge to contain the concrete. The wide-flange beam connection to the channel is sized per the typical connection schedule.
