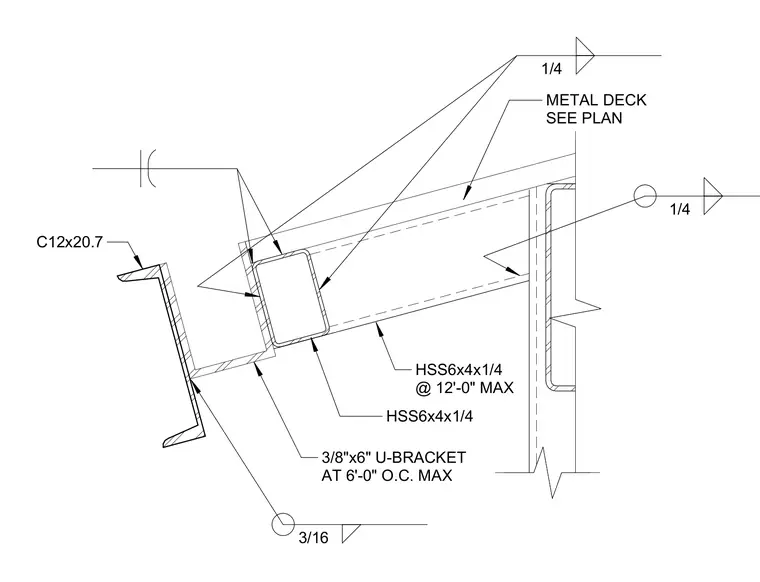

A C12x20.7 channel gutter connects to an HSS 6x4x1/4 structural steel member using three-eighths by six-inch U-brackets spaced at a maximum of six feet on center. The roof framing consists of HSS 6x4x1/4 structural tubing spaced at a maximum of twelve feet on center supporting a metal deck sized per plan. Fillet welds of one-quarter inch and three-sixteenths inch secure the steel components together according to the indicated weld symbols.
METAL DECK SEE PLAN HSS6x4x1/4 @ 12'-0" MAX HSS6x4x1/4 C12x20.7 1/4 3/16 1/4 3/8"x6" U-BRACKET AT 6'-0" O.C. MAX
