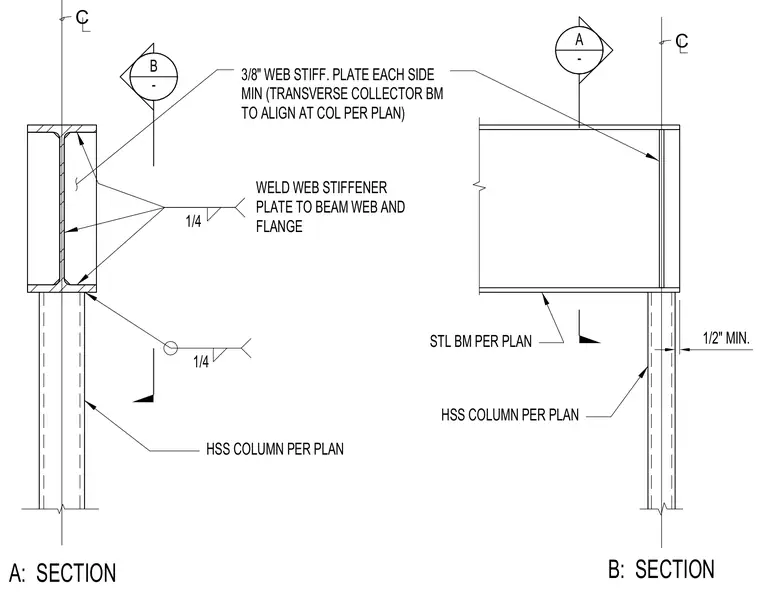

A steel beam frames into a hollow structural section column with a minimum one-half inch clearance. Three-eighths-inch web stiffener plates are welded to each side of the beam web and flange using quarter-inch fillet welds. The transverse collector beam aligns at the column per plan. A quarter-inch fillet weld secures the beam to the hollow structural section column.
C C 1/2" MIN. A: SECTION B: SECTION B - A - 3/8" WEB STIFF. PLATE EACH SIDE MIN (TRANSVERSE COLLECTOR BM TO ALIGN AT COL PER PLAN) 1/4 WELD WEB STIFFENER PLATE TO BEAM WEB AND FLANGE 1/4 HSS COLUMN PER PLAN HSS COLUMN PER PLAN STL BM PER PLAN
