Structural · S-DMQ7F

Typical Closure Plate (Overhang L <=12")

Materials

Concrete Steel Timber / Wood Brick Metal (misc.)

Elements

Walls Curtain Walls Facades / Cladding Roofs Decks Arches Bracing Connections / Plates

Connections

Bracing Connection

About this detail

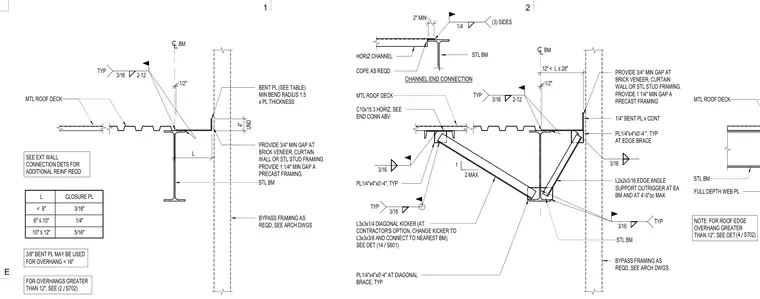

Roof edge overhang conditions supported by steel beams with bent closure plates, outriggers, and diagonal kickers. Metal roof deck bearing on structural steel beams with a continuous bent plate closure sizing table based on overhang length, ranging from 3/16 inch for overhangs under 6 inches to 5/16 inch for overhangs between 10 and 12 inches. For overhangs between 12 and 28 inches, a C10x15.3 horizontal channel and an L3x3x1/4 diagonal kicker are incorporated, with options to upsize the kicker to L3x3x3/8 and connect to the nearest beam. Connection plates measuring 1/4"x4"x0'-4" are typically welded at edge braces and diagonal braces using three-sided fillet welds. Clearances require a three-quarter inch minimum gap at brick veneer, curtain walls, or steel stud framing, and a one and one-quarter inch minimum gap at precast framing.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
