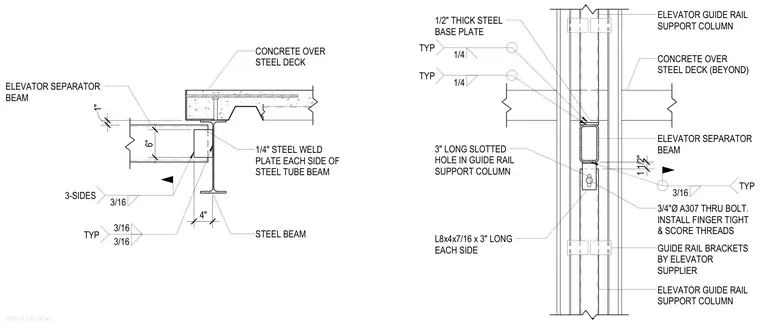

An elevator separator beam frames into a supporting steel beam using one-quarter-inch steel weld plates attached to each side of the steel tube beam with three-sixteenth-inch fillet welds on three sides. An elevator guide rail support column intersects the assembly via an underground half-inch thick steel base plate welded with one-quarter-inch fillet welds. L8x4x7/16 angles three inches long are provided on each side, utilizing a three-inch long slotted hole in the guide rail support column. Three-quarter-inch diameter A307 through-bolts secure the bracket assembly and are specified to be installed finger tight with scored threads to allow controlled movement. Concrete over a steel deck appears beyond the structural connection.
SF521-D1 ELEV DETAIL STEEL BEAM CONCRETE OVER STEEL DECK ELEVATOR SEPARATOR BEAM 1/4" STEEL WELD PLATE EACH SIDE OF STEEL TUBE BEAM 3/16 3-SIDES 3/16 3/16 TYP 6" 4" 1" ELEVATOR SEPARATOR BEAM GUIDE RAIL BRACKETS BY ELEVATOR SUPPLIER L8x4x7/16 x 3" LONG EACH SIDE 3" LONG SLOTTED HOLE IN GUIDE RAIL SUPPORT COLUMN 1/2" THICK STEEL BASE PLATE ELEVATOR GUIDE RAIL SUPPORT COLUMN 3/4"Ø A307 THRU BOLT. INSTALL FINGER TIGHT & SCORE THREADS CONCRETE OVER STEEL DECK (BEYOND) ELEVATOR GUIDE RAIL SUPPORT COLUMN 1 1/2" 1/4 TYP 3/16 TYP 1/4 TYP
