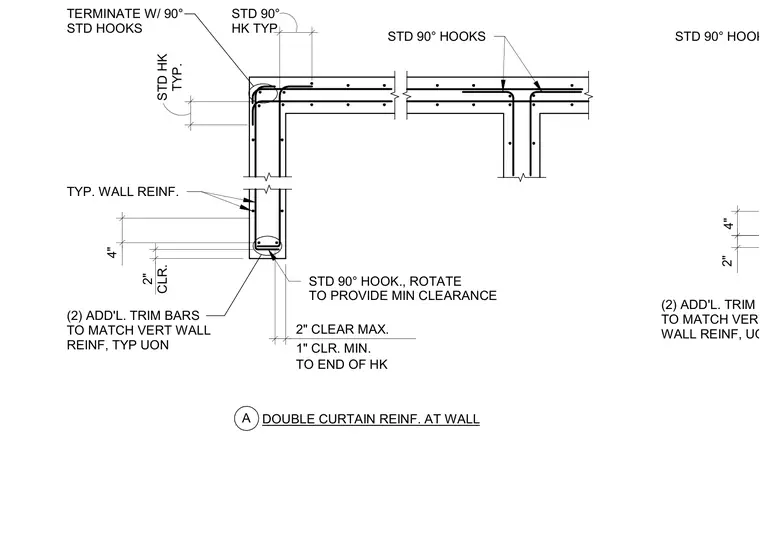

Double curtain wall reinforcement detailing standard ninety-degree hooks and additional trim bars at wall corners and intersections. Vertical and horizontal wall reinforcement terminates with standard ninety-degree hooks, rotated to provide minimum clearance. Additional trim bars match the vertical wall reinforcement unless otherwise noted. Concrete cover dimensions include two inches maximum to the end of the hook and one inch minimum clear.
STD 90° HK TYP 2" CLR. 4" 4" 2" STD HK TYP. (2) ADD'L. TRIM BARS TO MATCH VERT WALL REINF, TYP UON TYP. WALL REINF. 2" CLEAR MAX. TO END OF HK 1" CLR. MIN. STD 90° HOOK., ROTATE TO PROVIDE MIN CLEARANCE STD 90° HOOKS (2) ADD'L. TRIM BARS TO MATCH VERT WALL REINF, UON TERMINATE W/ 90° STD HOOKS DOUBLE CURTAIN REINF. AT WALL A STD 90° HOOKS
