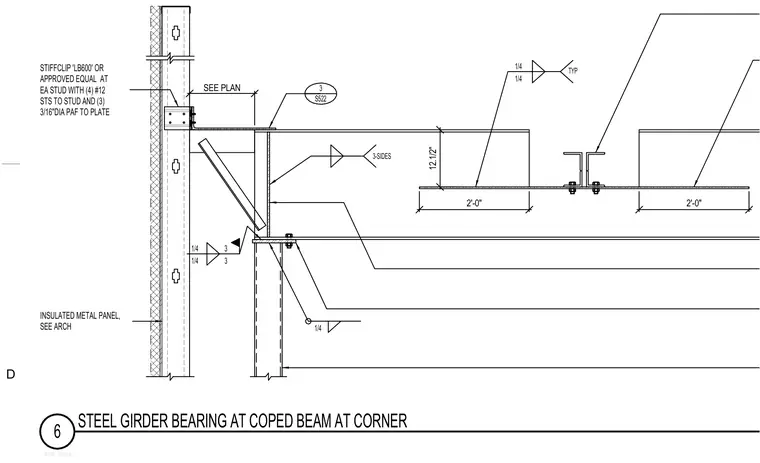

A structural steel girder bears upon a column and connects to a coped steel beam framing into the corner. A Stiffclip LB600 or approved equal is attached to each stud using four number 12 self-tapping screws and three 3/16-inch diameter powder-actuated fasteners to the plate. Fillet welds of 1/4-inch size connect the structural steel components, with 3-sides welding specified at the vertical stiffener connection. Insulated metal panels span the exterior facade as detailed on the architectural drawings.
180290_S522-6 6 STEEL GIRDER BEARING AT COPED BEAM AT CORNER 3-SIDES 1/4 1/4 1/4 3 3 STIFFCLIP 'LB600' OR APPROVED EQUAL AT EA STUD WITH (4) #12 STS TO STUD AND (3) 3/16"DIA PAF TO PLATE INSULATED METAL PANEL, SEE ARCH 1/4 TYP 1/4 3 S522 SEE PLAN 12.1/2" 2'-0" 2'-0" D
