A diagonal bracing connection utilizes a half-inch A572-50 steel gusset plate anchored with a total of eighty-two three-quarter-inch by six-inch headed studs and eight number ten by ten-foot A706-60 reinforcing bars. The assembly connects diagonal braces positioned per elevation, with slot braces detailed per sheet S41-02. Stud placement may be adjusted horizontally as required to avoid conflicts. Critical dimensions and clearances include a one-inch minimum edge distance, three-inch stud spacings, and a top of wall elevation reference at 342'-0".

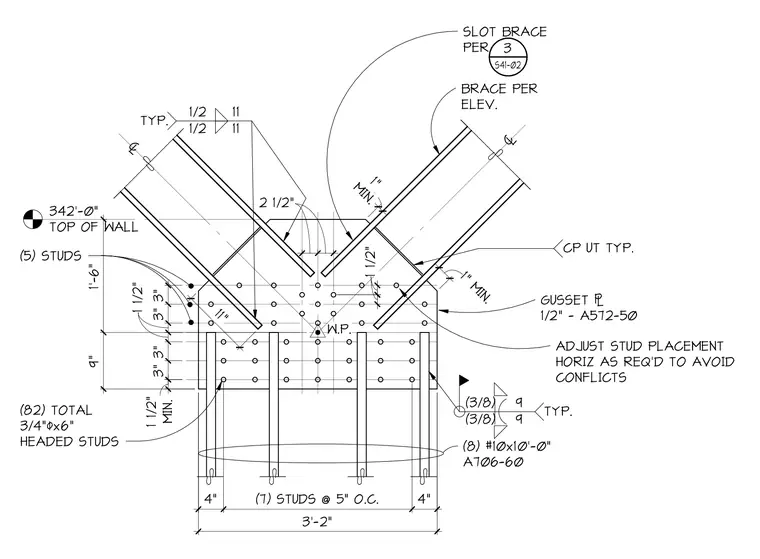

2 2 342'-0" TOP OF WALL 1'-6" 9" MIN. 1" 1" MIN. 1 1/2" 1 1/2" 2 1/2" 2 1/2" 11" 3" 3" 1 1/2" 1 1/2" 3" 3" MIN. 1 1/2" 4" (7) STUDS @ 5" O.C. 4" 3'-2" (5) STUDS W.P. (82) TOTAL 3/4" x6" HEADED STUDS (8) #10x10'-0" A706-60 (3/8) 9 (3/8) 9 TYP. CP UT TYP. BRACE PER ELEV. SLOT BRACE PER 3 S41-02 1/2 11 1/2 11 TYP. GUSSET 1/2" - A572-50 ADJUST STUD PLACEMENT HORIZ AS REQ'D TO AVOID CONFLICTS
